High Shear Wet Granulation

In the cylinder (conical) container, powder materials and binder will be mixed into moist soft materials by the mixed paddles at the bottom. Then they will be cutted into uniform wet-particles by the side high-speed smashed paddles

Send Inquiry→ Chat Now

Product Details
Technical Parameters

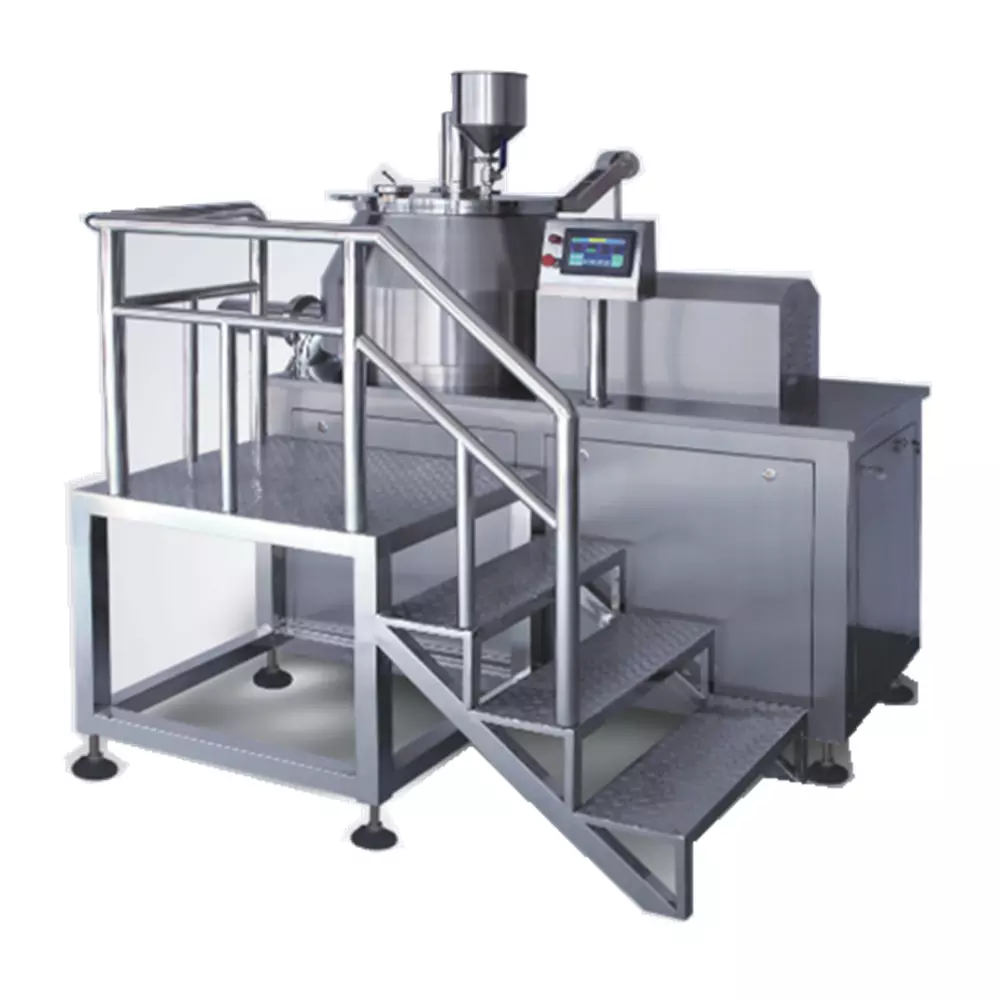

High Shear Wet Granulation

Product Description

High Shear Wet Granulation in a cylindrical (conical) container, the powder material and the binder will be mixed into a squishy material through the mixing paddle at the bottom.

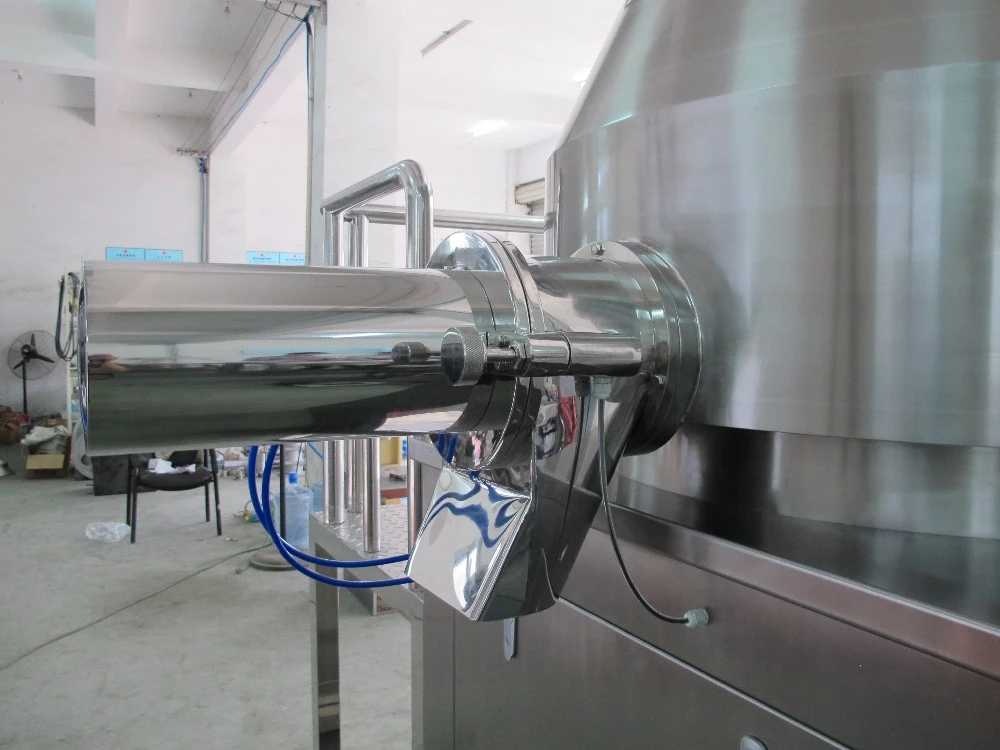

Then it is cut into uniform wet particles by a high-speed crushing blade. The wet granulator for powder injection adhesive is used in pharmaceutical, food, chemical industry and other fields.

Volume	200L
Working volume	60-150L
Output	30-75kgs/batch
Operating time	混合:2分钟Granulation:7-14min/batch
Size of the finished granule	Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed	30-260rpm
Mixing power	15kw
Granulation Speed	50-3000rpm
Granulation power	4kw
Air compressor	0.5m³ 0.7Mpa (prepared by buyer)
Inlet of cooling water and compressed air	Φ10mm
Dimension	2180×810×1950mm
Weight	1350kg

Products Show

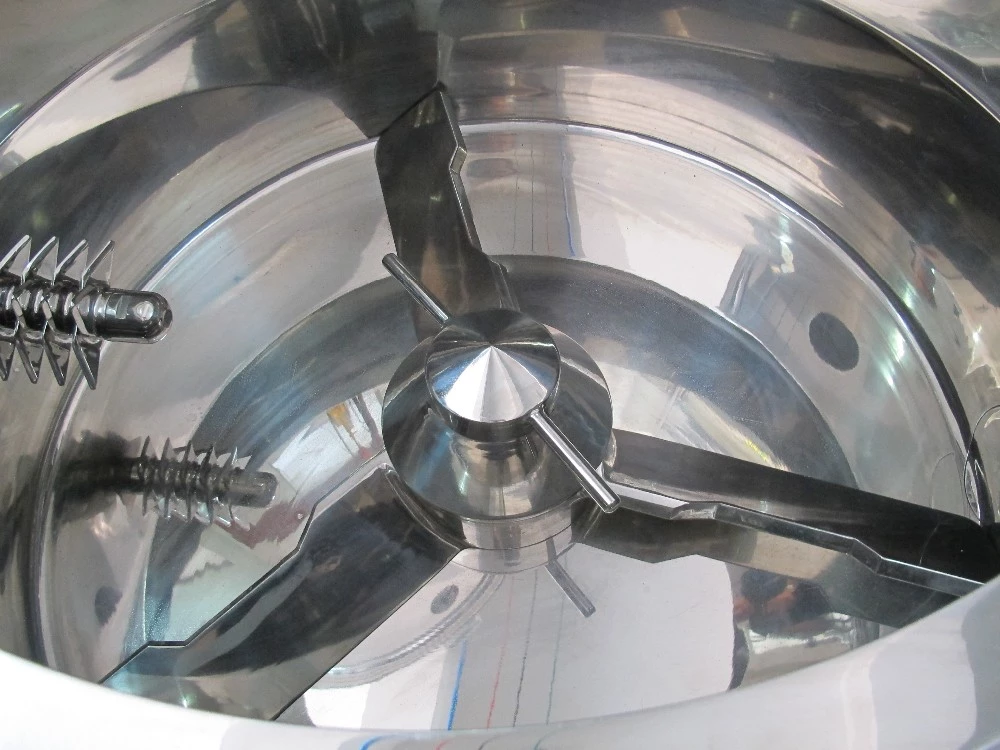

Mixed Machine

Feature

It is a horizontal cylindrical (cone) structure. The drive shaft is fully sealed, and water is required for cleaning. Fluidized granulation, the finished particles are similar to roundness and have good fluidity. Compared with the traditional process, it can reduce the adhesive by 25% and shorten the drying time.

Each batch of materials is dry mixed for 2 minutes and then granulated for 1-4 minutes. Compared with the traditional process, it is increased by 4-5 times. All processes of dry mixing, wet mixing and granulation are completed in a closed container. This reduces the process and complies with GMP standards. There are strict safety precautions throughout the operation.
