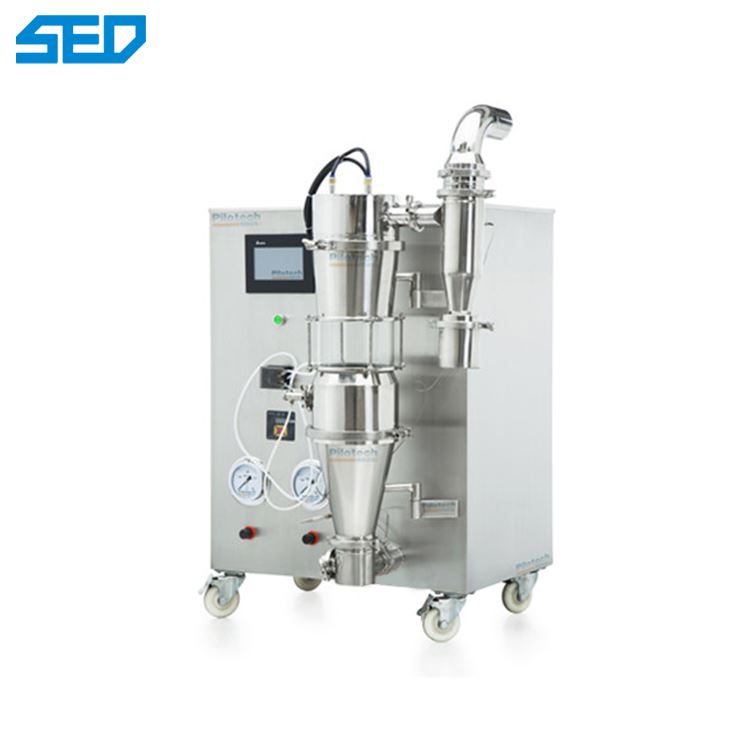

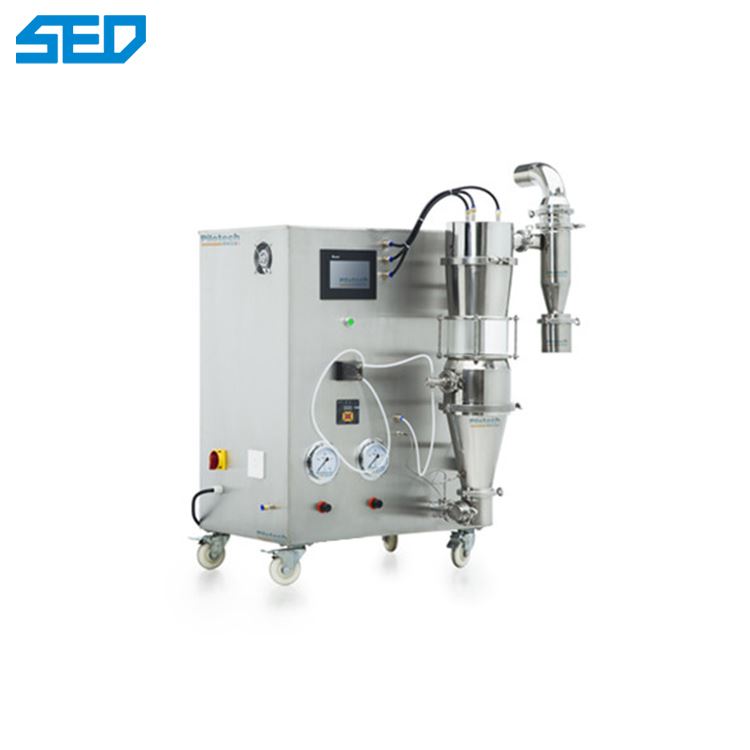

Mini Plastic Fertilizer Granulator Machine

Mini Plastic Fertilizer Granulator Machine

Product description

· Spray dryer:1500ml/h,inlet temperature 105°C -200°C

· Spray granulator:Batch size from 50 g up to 1000 g

· Coating:Batch size from 50 g up to 1000 g

· Mixing:Batch size from 50 g up to 1000 g

· Fluidzied bed dryer:Batch size from 50 g up to 1000 g

· Designed for trials with small-scale processes especially in R&D as well as Universities

main features

Small footprint: 1 square meter is enough.

Low power consumption, environmental protection and easy operation.

Suitable for heat-sensitive materials and samples with easily soluble particles.

PLC operation control. The LCD touch screen displays the entire experiment process.

Shutdown protection: press the stop button, the machine (except the fan) will stop working immediately, so as to avoid burning the heating components due to misoperation (forced shutdown).

Stainless steel body and two-fluid spray atomization structure made of SUS 316 stainless steel.

Real-time control of PID temperature.

main parameter

Sr.no	Parameter	Pilotech YC-1000 spray granulator
1	Function	Spray dryer,spray granulator,coating,mixing
2	Power	5KW ,220V,50/60Hz
3	Spray granulator capacity	Max. 1000g/batch
4	Spray dryer capacity	Max. 1500ml/h
5	Minimum sample volume	50g
6	granulator temperature	40-150°c
7	Spray dryer inlet temp.	105-200°c
8	Compressed air	2 - 4条
9	Temperature precision	±1°c
10	Coating	50-1000g/batch
11	Mixing	50-1000g/batch
12	Nozzle type	Two fluid nozzle
13	Nozzle jet	0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)
14	Airflow	0-150m3/h
15	Peristaltic pump	Max. 1500ml/h
16	Main chamber volume	10L
17	Heater power	3.5KW
18	主燃烧室材料	SUS304 Stainless steel &High borosilicate glass
19	Body material	SUS304 Stainless steel
20	Seal of cyclone/cylinder	Silicone
21	Sound	<60db
22	Dimensions	900*800*1300mm
23	Weight	110KG
24	Operation mode	Automatic/Manual
25	Display	7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency
