Small Vegetable Fruit Food Vacuum Freeze Dryer description:The SED-24XDG vacuum freeze dryer changes the tedious operation of the past drying process, prevents material contamination, and realizes the automation of drying and sublimation, and is suitable for pilot or small batch production. This model has partition heating and programmable functions, and can memorize the freeze-drying curve, which is convenient for users to observe the freeze-drying process of materials.
Small Vegetable Fruit Food Vacuum Freeze Dryer
Description ofFreeze Dryer:
SED-24XDG真空冷冻干燥机已经改变了tedious operation of the past drying process, prevented material contamination, realized the automation of drying and sublimation, and was suitable for small and medium batch production.
The model has partition heating and programmable functions, can memorize the freeze-drying curve, and facilitate users to observe the freeze-drying process of materials.
Feature ofFreeze Dryer
*Many heat-sensitive substances will not be denatured or inactivated.
* When drying at low temperature, some volatile components in the material are lost very little.
*在冷冻干燥过程中,增长的microorganisms and the action of enzymes cannot proceed, so the original properties can be maintained.
* Since it is dried in a frozen state, the volume is almost unchanged, the original structure is maintained, and no concentration phenomenon occurs.
* Since the water in the material exists in the form of ice crystals after pre-freezing, the dissolved inorganic salts originally dissolved in water are evenly distributed in the material. During sublimation, the dissolved substances dissolved in water are precipitated, which avoids the phenomenon of surface hardening caused by the precipitation of inorganic salts carried by the migration of moisture from the material to the surface in the general drying method.
* After drying, the material is loose and porous, and it is sponge-like. After adding water, it dissolves rapidly and completely, and restores its original shape almost immediately.
* Since drying is carried out under vacuum with very little oxygen, some oxidizable substances are protected.
* Drying can remove more than 95% to 99% of the moisture, so that the dried product can be stored for a long time without deterioration.
* Because the material is in a frozen state and the temperature is very low, the temperature of the heat source for heating is not high, and a heater with normal temperature or low temperature can meet the requirements. If the freezing chamber and the drying chamber are separated, the drying chamber does not need to be insulated, and there will not be a lot of heat loss, so the utilization of thermal energy is very economical.

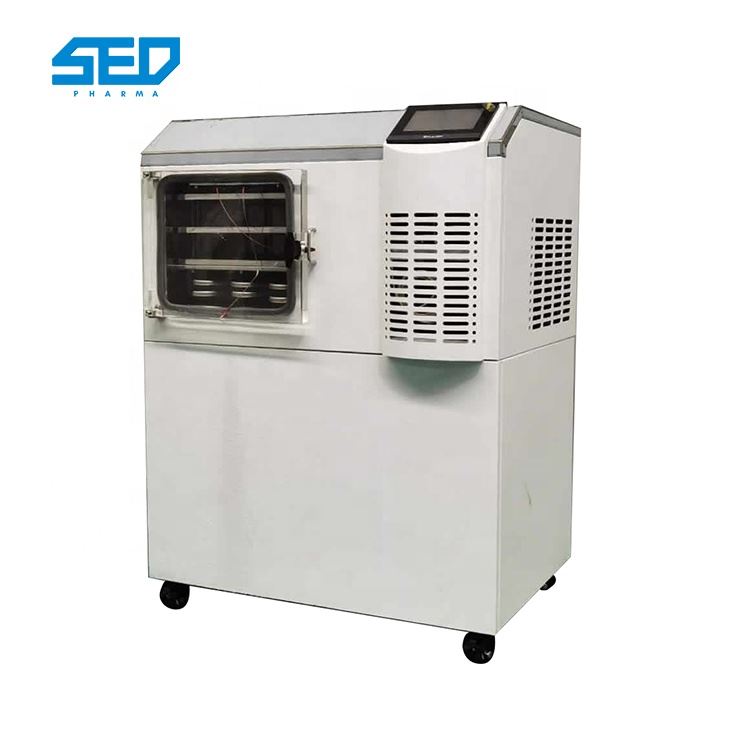

Products Show ofFreeze Dryer
Machine Parameters ofFreeze Dryer
| Freeze-dried area | 0.24m2 |
| Panel materials | 300*400mm (2+1 layer) |
| Maximum water catching capacity | 2kg/24h |
| Cold hydrazine temperature | -60 |
| Vacuum | <10Pa |
| Shelf temperature | -50to60 |
| Voltag | 220V 50HZ |
| Power | 1.5KW |
| Overall size | 850*760*1250mm |
| Weight | 200KG |
ApplicationofFreeze Dryer
FAQ:
Q1:Are You A Factory or A Trading Company?
A: We Provided Perfect OEM and After-sale Service.
Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan.
Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine.
Q4:How Can I Know Your Machine Is Designed For My Product?
A:You Can Send Us Samples of Your Product and We Test It On Machine.
Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying Methods.
Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated.
Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
What a better price?Contact us!
