Mesh Belt Dryer Operating principle:Before drying, charging the material into the feed hopper, spread evenly over the belts. The materials on the belt move forward at a constant speed by drive motor. The hot wind will enter the drying chamber, going up and through the material evenly.

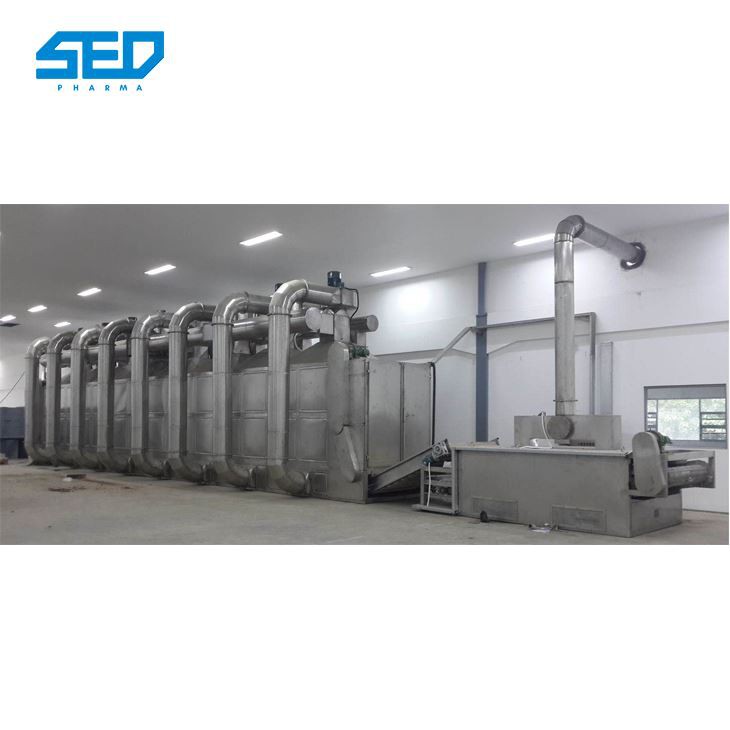

Mesh Belt Dryer
Operating principle:
Before drying, the mesh belt dryer loads the material into the hopper and distributes it evenly on the belt. The material on the belt moves forward at a constant speed by the drive motor. The hot air will enter the drying chamber, rise and pass through the material evenly.
When hot air contacts the material, the temperature of the material will rise rapidly. These materials absorb hot air and release moisture. Through the fan, moisture will be discharged. In this way, the heat exchange process is completed and the material is dried at the same time.
Each mesh belt has its own drive motor, which can control its own frequency, can effectively control the feeding speed and drying time, and can meet the final moisture requirements. Both belts have bumpers to prevent material from entering the track and chain. There are 12 support rods that support the belt.
The support rod has been fixed on the chain of the crawler on both sides (the ball of the chain can move flexibly and is good at keeping movement). The pin and the seat belt are fixed by bolts to prevent them from moving together, which can maintain the seat belt and extend its service life. There are spindles on both sides of the inlet and outlet. The main sprocket is fixed at both ends of the main shaft.
The 12 channel steel at the bottom of the equipment and the 5 square pipes around the body frame are integrally welded together. The thickness of the thermal insulation layer is 50 mm and is made of high-quality aluminum silicate wool. Can be used to reduce heat loss. The inside of the device is a 1.0 mm stainless steel plate and rivets.
The outside is 1.2mm A3. The induced draft fan is made of A3. On the side of the equipment, there is an observation door and a cleaning door, which can help you learn more about the process and work cooling. A thermocouple is installed inside. The internal temperature can be displayed through the XMT command.
Technical Parameters：
Model |
DW3-1.5-10 |
Belt width |
1.5m， 10mesh SUS304 |
Drying length |
10m X3 Floor：3 |
Units |
5Unit(2 m is as a unit, with one circulation fan.) |
Spread thickness |
10- 50 mm |
| Drying temperature | 80-- 120℃ |
| 干燥时间 | 1.5- 2.5h，controlled |
| Drying capacity | 100--300Kg/h |
| Drive motor | 1.1KW 2pcs |
| Circulation fan | 4-72 2.2KW 5sets |
| Exhaust fan | 4-72， 2.2kw， 2sets |
| Exhaust pipe | 1.2mm SUS304 |
| Overall dimension | 12500×2100×3500（mm） |
| Total installation power | 18kw |
