Vegetable drying industrial fruit pulp dryer is specially designed for oxidizable materials and organic solvents, and uses inert gas formed by circulating nitrogen instead of conventional air for spray drying.

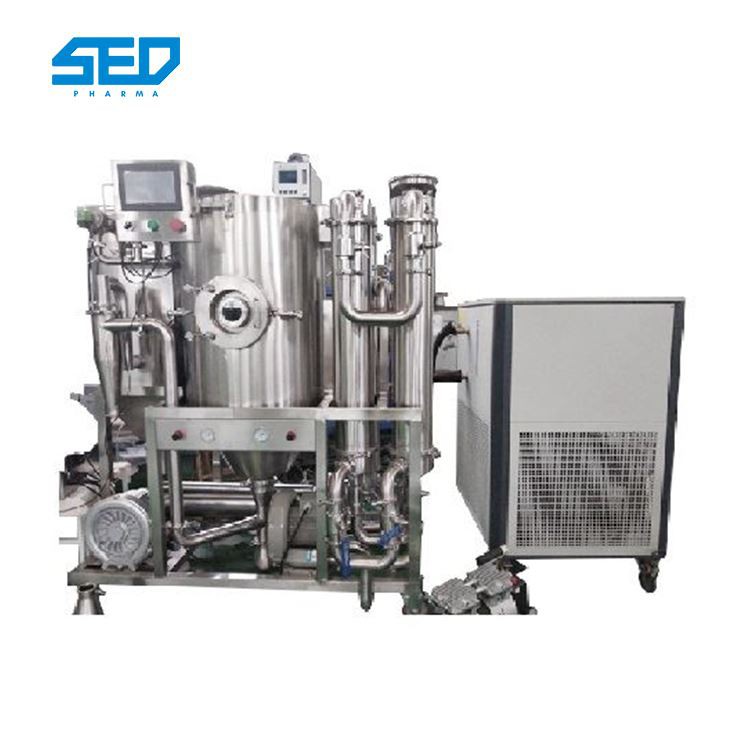

Vegetable Drying Industrial Fruit Milk Drying Machine
Product Description
Vegetable drying industrial fruit pulp dryer is specially designed for oxidizable materials and organic solvents, and uses inert gas formed by circulating nitrogen instead of conventional air for spray drying.
In addition to protecting inert gases, organic solvents can also be recovered. A closed circulation spray system specially designed for the characteristics of liquid solvents.
1.1. Solvent: |
Alcohol Mixed Solution |
1.2. Maximum solvent handling capacity: |
30 kg/H |
1.3. Temperature of condyle heating: |
~220 C |
1.4. Diameter of drying chamber (mm): |
2500*2500*60 degree C |
1.6. Mechanical power: |
10 kW |
1.7. Size of floor area: |
according to plant layout |
1.8. Accuracy of oxygen content analyzer: |
content analyzer: |
1.9. Oxygen content in the system: |
less than 3% |
1.10. Pressure range in the pipeline: |
1500 pa~2500 pa |
1.11. Model of explosion-proof sheet: |
specification for PFTA65-0.01-200SS |
1.12. Explosion-proof sheet material: |
316L/F46/316L |
1.13. Explosion-proof sheet diameter: |
DN200 |
1.15. Approved blasting pressure: |
0.01 (+25%@200 C); 0.012 (+25%) (@28 C) |
