SED-800J hard capsule oxygenator adopts PLC control system and man-machine interface. When there is a failure or lack of personnel during operation, it will automatically send out an alarm, display the failure and automatically release the alarm.
Powder Capsule Filling Machine
产品Description ofCapsule Filler
NJP-800 series automatic hard capsule filling machine is a new generation machine, with man-machine interface, PLC, sound seal, variable frequency stepless speed regulation, simple operation, high capsule installation rate, accurate dosage, low energy consumption, high output, Product standardization and serialization.
With molds of different specifications, it can fill hard capsules from No. 00 to No. 5 and safety capsules A, B, C, D, E. It can realize both slow-release granule filling and powder-granule mixing filling.
Feature ofCapsule Filler
1) Beautiful appearance, exquisite workmanship and easy operation.
2) The storage seat and the measuring plate are designed as a whole, so that the measuring plate and the storage rod have no deviation phenomenon, avoid the friction phenomenon between the storage rod and the measuring plate, improve its accuracy and prolong the life of the machine.
3) The unqualified capsules are automatically rejected (excluding the qualified rate), and the drugs in the capsules can be recycled and reused, which greatly increases the economic benefits.
4) Easy to disassemble and clean, the same machine can manually replace different molds
5) The vacuum cleaner, vacuum pipe and exhaust pipe are installed inside the machine, which avoids the hardening, rupture and leakage of the air pipe, making it easier to clean the operating platform. Drugs can not come into contact with organic substances, in line with GMP requirements
6) The cover of the storage rod is made of stainless steel, instead of the original plastic cover, which eliminates the phenomenon of damage; reduces the number of screws and covers on the platform
7) Using PLC, touch screen, touch screen can set password, automatically set parameters, print data and other functions can automatically alarm, the machine will automatically stop when it encounters failure or lack of material, all wearing parts are imported to increase mold blowing, suction function, Make sure the die hole is free of dust when filling the capsule

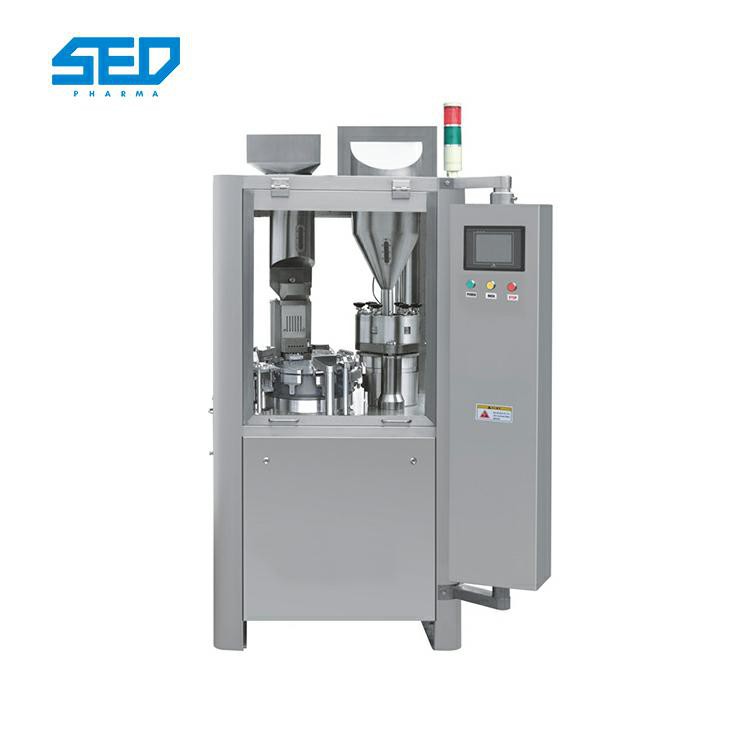

产品Show ofCapsule Filler
Machine Parameters ofCapsule Filler
Model: |
SED-800J |
Capacity |
800 Capsules Per Minute |
Suitable capsule size |
Capsule size 00# to 5# |
Power Supply |
380V 50HZ Three Phase(According to customer requirements) |
Noise: |
Less than 75dB (A) |
Overall Dimensions: |
865×855×1900mm |
Total Power |
5KW |
No. Of Segment Bores |
6 Pcs |
Application ofCapsule Filler
