Grease Powder Sachets Drinking Water Filling Machine Product Description filling machine powder is the main equipment of powder production line. The main working principle adopts stepper motor control screw powder delivery drive coils, thereby accurately control the raw material powder required capacity packaging to antibiotic glass bottle, and cover the rubber plug.

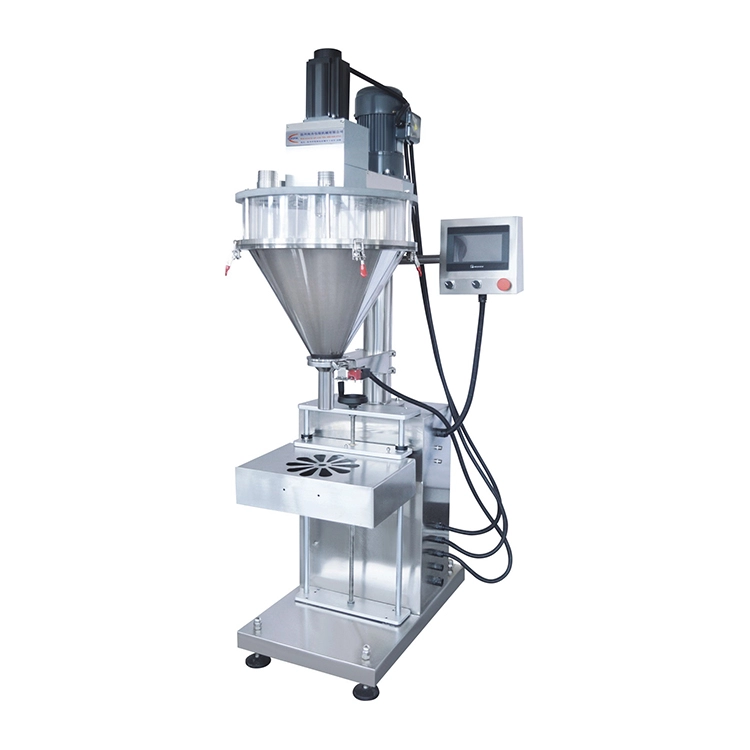

Powder Filling Machine
Product Description
The oil powder bagged drinking water filling machine is the main equipment of the powder production line. The main working principle is to use a stepping motor to control the screw powder feeding drive coil to accurately control the amount of raw material powder required, and put it into the antibiotic glass bottle, and cover the rubber stopper.
Through the double-track conveying bottle, double-screw filling, the double-track automatically enters the stopper and stopper process; to ensure that the net weight of the antibiotic powder packaged in the bottle is strictly controlled within the error range specified by the process.
Its main structure is composed of a bottle body, a twin-screw dispensing head, a stopper plate, a stopper plate, a cork pressing mechanism, an index plate conveying mechanism, a driving mechanism and a control system.
Form of easurement |
Use screw measurement |
Packing speed |
10-45bags/min |
Filling range |
10-5000g (Can be adjusted by changing the screw ) |
Hopper volume |
45L |
Power supply |
AC220V/380V 50Hz/60Hz 1.15kw |
Machine dimensions |
1100×930×2200mm |
包装precision |
Packing weight≤300g, deviation≤±2% |
Packing weight 300-1000g, deviation≤±1% |
|
Packing weight>1000g, deviation≤±0.5% |
产品Show
Feature
1. Use screw measurement for powder type materials, with screw feeder to achieve feeding, metering. 2. High precision, high quality, high high speed and long life. 3. Easy to operate and easy to clean. 4. Be made of stainless steel, good shape and nice appearance.
