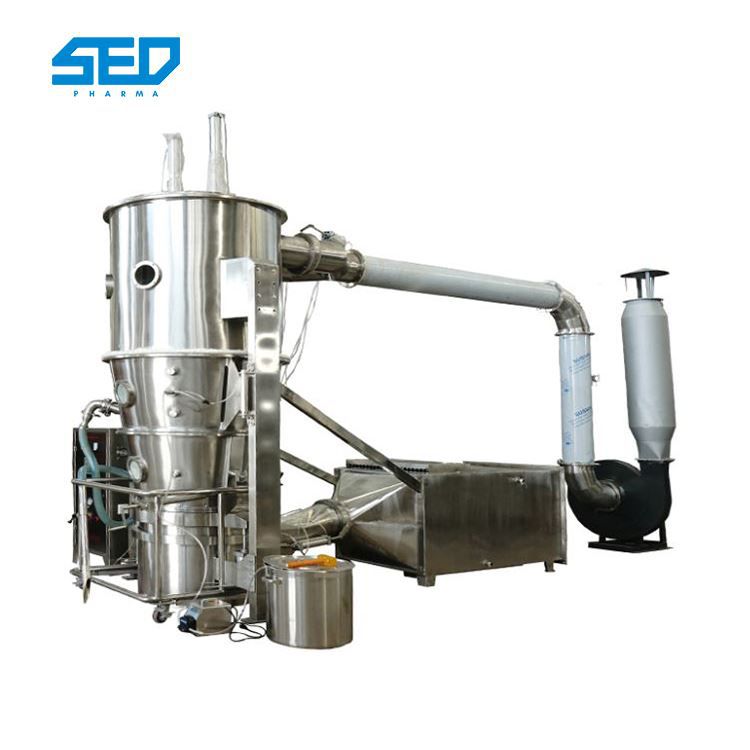

Foodstuff Boiling Dryer
产品description
Calcium chloride fuild bed dryer

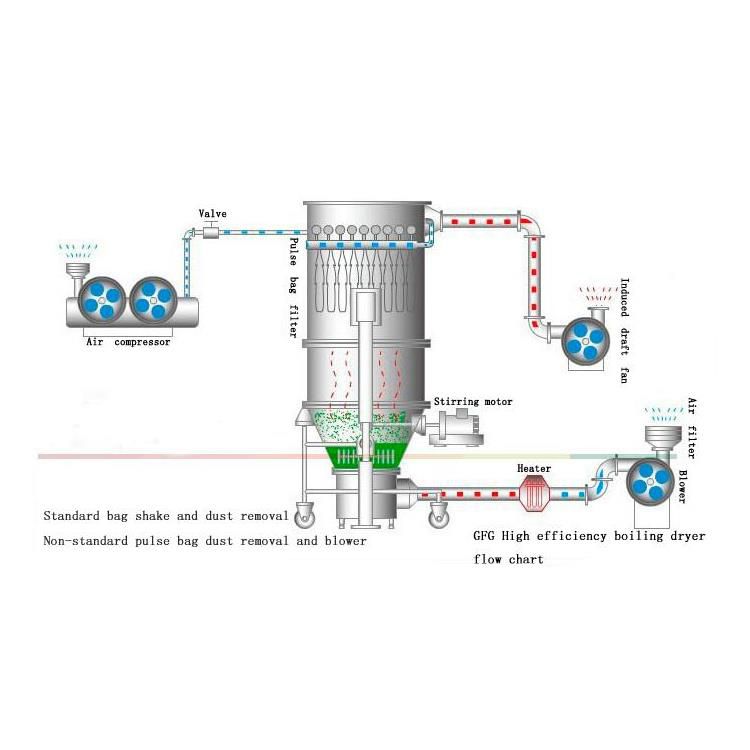

The boiling granulation method is a comprehensive result of spray and fluidization technology. It enables the traditional mixing, granulating and drying processes to be completed in the same airtight container. Therefore it is called "one-step granulator".
The machine is simple in structure, easy to clean and maintain, not only can be made into particles, but also can be dried quickly. The processes of mixing, granulating, and drying will be completed simultaneously in the same airtight container. Therefore, pollution caused by contact with the environment can be prevented, and the quality of medical particles can be guaranteed to meet the requirements of "GMP".
main features

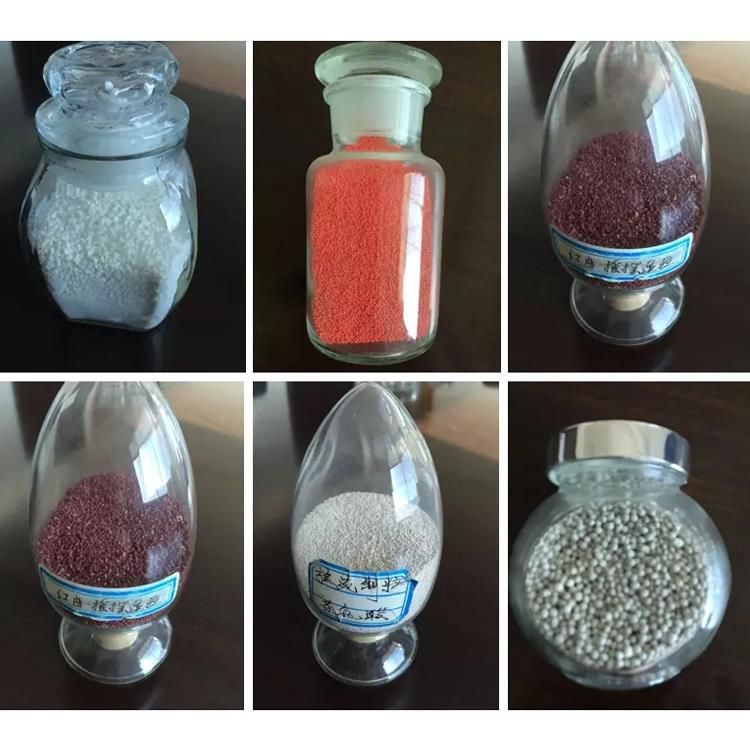

Medicine granulating Granulating ; granulator of tablet, quick solved drink, granule used for capsule. Foodstuff granulating and coating: Sugar, coffee ,cocoa ,powder, cream ,powder syrup, amino acid, favoring,
puffed food. Granulating for pesiticide ,pigment , dyertuff. Drying for powder ,granule, block raw materials.
Coating: granulate, pill protection layer ,formulated color ,slow release ,film ,coating for intesting solving.
main parameter
item |
unit |
type |
|||||||||
3 |
2.15 |
15 |
30 |
60 |
120 |
200 |
300 |
500 |
|||
container |
volume |
L |
12 |
22 |
45 |
100 |
220 |
420 |
670 |
1000 |
1500 |
diameter |
mm |
300 |
400 |
550 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
|
capability |
min |
kg |
1.5 |
4 |
10 |
15 |
30 |
80 |
100 |
150 |
250 |
max |
kg |
4.5 |
6 |
20 |
45 |
90 |
160 |
300 |
450 |
750 |
|
fan |
capacity |
m3/h |
1000 |
1200 |
1400 |
1800 |
3000 |
4500 |
6000 |
7000 |
8000 |
pressure |
mmH2O |
375 |
375 |
480 |
480 |
950 |
950 |
950 |
950 |
950 |
|
power |
kw |
3 |
4 |
5.5 |
7.5 |
11 |
18.5 |
22 |
30 |
45 |
|
steam expenditure |
kg/h |
15 |
23 |
42 |
70 |
141 |
211 |
282 |
366 |
451 |
|
compressed air expenditure |
m3/min |
0.9 |
0.9 |
0.9 |
0.9 |
1.0 |
1.0 |
1.1 |
1.5 |
1.5 |
|
weight |
kg |
500 |
700 |
900 |
1000 |
1100 |
1300 |
1500 |
1800 |
2000 |
|
steam pressure |
Mpa |
0.3-0.6 |
|||||||||
temperature |
.C |
adjustable from ambient to 120.C |
|||||||||
working time |
min |
decide in accordance with the properties of raw materials(45-90) |
|||||||||
field |
% |
≥99 |
|||||||||
noise |
db |
安装时,主机separated form fan |
|||||||||
size(L×W×H) |
m |
1.0× 0.6× 2.1 |
1.2× 0.7× 2.1 |
1.25× 0.9× 2.5 |
1.6× 1.1× 2.5 |
1.85× 1.4× 3 |
2.2× 1.65× 3.3 |
2.34× 1.7× 3.8 |
2.8× 2.0× 4.0 |
3× 2.25× 4.4 |
|
