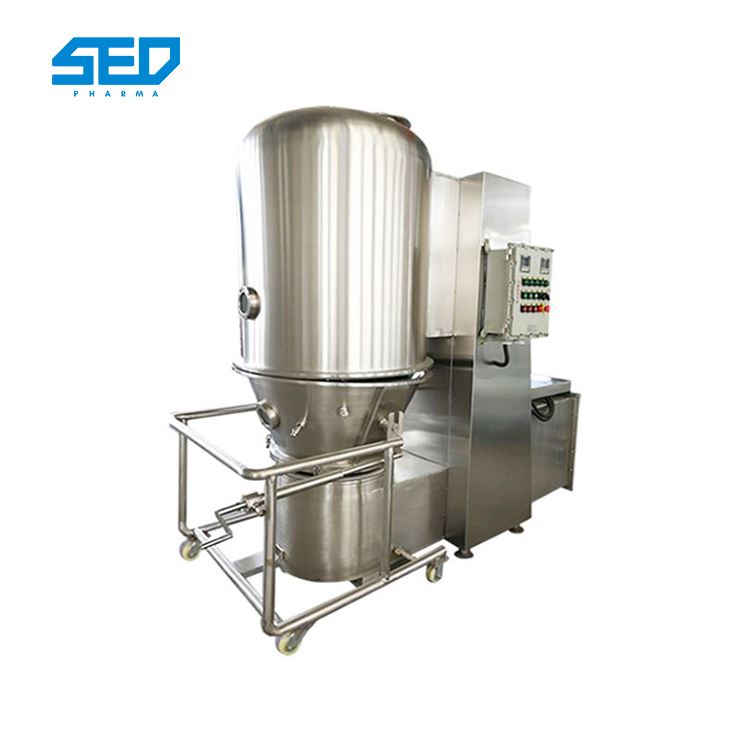

Boiling Dryer Non-standard Products

Boiling Dryer Non-standard Products Product description Through the heating of air high-speed draught is formed by the gas distribution board to make the material in question boil, thereby dispelling the moist draught and achieving the goal of drying. This dryer is composed of dryer air filter, air heater, draught fan , and...

Boiling Dryer Non-standard Products

Boiling Dryer Non-standard Products

Product description

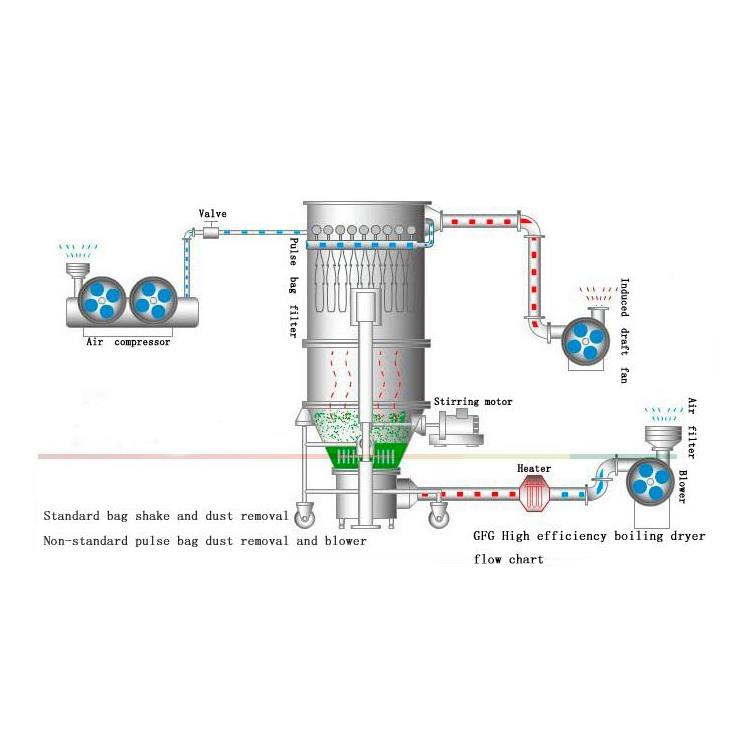

The non-standard product of the boiling dryer is to heat the air and form a high-speed airflow by the gas distribution plate to make the material in question boil, thereby eliminating the humid airflow and achieving the purpose of drying.


The dryer is composed of dryer air filter, air heater, induced draft fan and automatic temperature controller.

main features

High drying speed and uniform temperature; hermetic and unpolluted draught after being filtered; and simple operation and easy cleaning. It is therefore, an advanced drying equipment conforming to G.M.P requirements.

main parameter

Item

Model

Feeding

kg

60

120

150

200

300

500

Fan

Air amount

m3/h

2361

3488

4901

6032

7800

10800

Air pressure

mmH2O

594

533

679

787

950

950

Power

kw

7.5

11

15

22

30

37

Power of stirrer

kw

0.55

1.1

1.1

1.1

1.1

1.5

Revolution stirrer

rpm

11

蒸汽消耗

kg/h

141

170

240

282

366

451

Operate time

min

15-30

Main machine

mm

2700

2900

2900

3100

3300

3850
