Tdp Tablet Machine Automatic or Manual Pill Making Machine

is kind of double pressure type automatic rotation,continuous tablet machine,granular materials will be compressed into round,letting and anomalous tablet,double color tablets.It is mainly used in pharmaceutical industry tablet production,at the same time,it is suitable for...

Tdp Tablet Machine Automatic or Manual Pill Making Machine

We wholeheartedly provide users with first-classaluminum seal machin,effervescent tablet counting machine,dried fruit machineand services, contribute more wealth to society and clubs, and create more outstanding contributions to mankind. We implement a good way to monitor the implementation of the rules and establish a good culture of working strictly according to the rules and regulations. We continue to improve product quality in the spirit of professionalism. We advocate green office and low-carbon life, and carry out green public welfare to create a good atmosphere of concerted efforts to protect the environment.

Press Tablet Machine

Product description

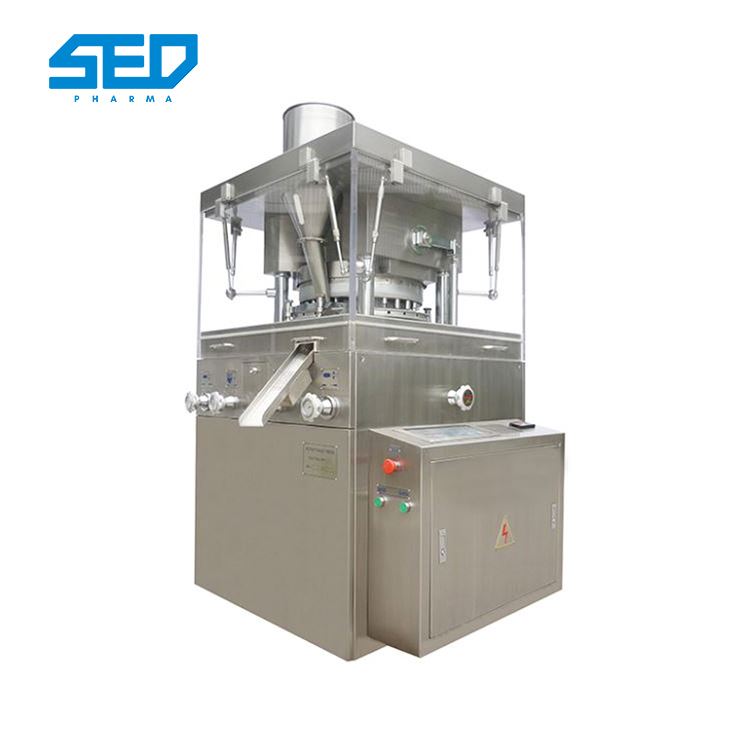

The tablet press is a dual-pressure automatic rotary, continuous tablet press, granular materials will be compressed into round, divergent and abnormal tablets, and two-color tablets.


它主要用于the production of tablets in the pharmaceutical industry. At the same time, it is suitable for industrial enterprises such as chemical, food and electronics.

Press Tablet Machine

Press Tablet Machine

Press Tablet Machine

parameter:

Product No.

SED-27D

Quantity of Punch &Die(set)

27

Max.Pressure(kn)

100

Max.Dia of Tablet (mm)

22

Max.Thickness of Tablet (mm)

6

Max.Depth of Filling (mm)

15

Rotation Speed(r/min)

3-35

Production Capacity(pc/h)

81000

Voltage (v/hz)

380/50

Motor Power(kw)

4

Overall Size

1240*980*1650

体重(公斤)

1850

characteristic

·外围套管是由o封闭形式f all stainless steel,internal mesa adopt stainless steel material,it can keep the surface glossy and prevent cross contamination and meet G.M.P requirement.

· It is equipped with organic glass and visual window,visual tablet state,all of the side plate can turn on and clear up and maintanence is easy.

· All controller and operating parts are rational layout.

· It is equipped with variable frequency speed control device for electrical control.convenient operation,steady running,it is safe and accurate.

· It is equipped with overload protection device,when pressure overload,it can stop automaticly.

· It is the mechanical and electrical integration has touch key and screen display.

· Be the leader in trying to use semi-automatic lubrication device and the top of rotary tablet is epuipped organic glass dust prevention device.

· Transmission system is sealed on the main tank below,is a safe separation of independent components,also has no cross pollution ,and transmission of infiltration in the oil pool,easy to has heat output and also it is wearable.

· It is equipped with powder absorbing device,can absorb indoor dust.

· Wearing parts like orbit,feeder,hopper,drive worm,powder taking equipment and it has general structure wuth zp33 type product,it is helpful for standardization,generalization and seriation.

Press Tablet Machine

Press Tablet Machine

Press Tablet Machine

Press Tablet Machine

Press Tablet Machine
