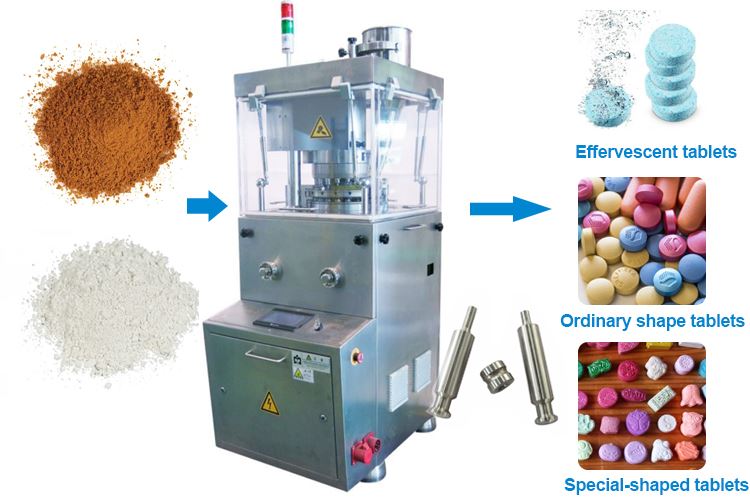

Pill Tablet Rotary Tablet Pressing Machine Application:That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc.

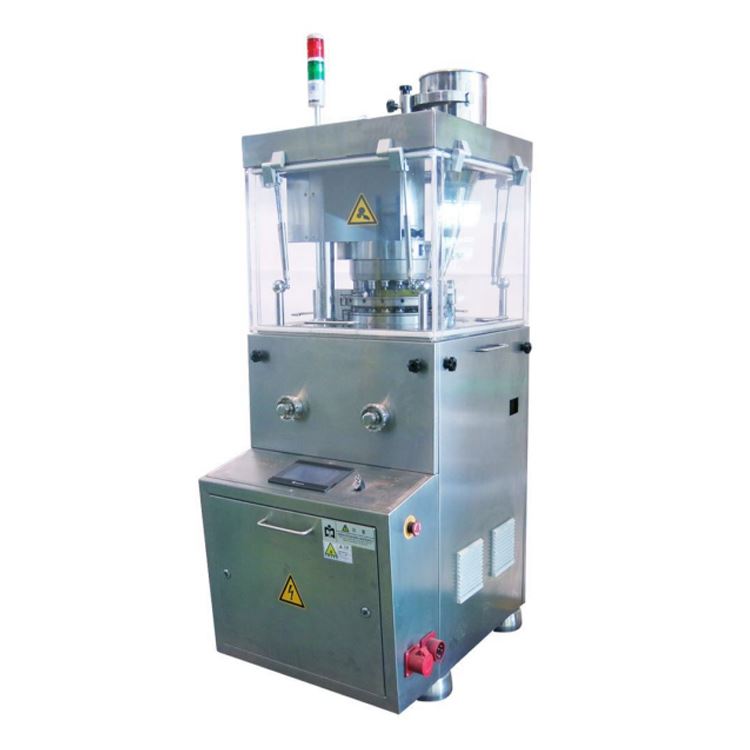

ZPT226-17D 35700pcs/h Pill Maker Tablet Press Machine
Application:
This machine is a continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Main Technical Data:
| Model | ZPT226-17D |
Stations (unit) |
17 |
Maximum compression (KN) |
60 |
Max. Diameter of tablet to be produced (mm) |
20 |
Capacity of the tablets (max tablets/hour) |
35700 |
Net weight of the machine (kg) |
850 |
| Max. Thickness of tablet (mm) | 6 |
| Rotary speed of the turret (rpm) | 35 |
| Max. Filling depth (mm) | 15 |
| Motor power (kw) | 3 |

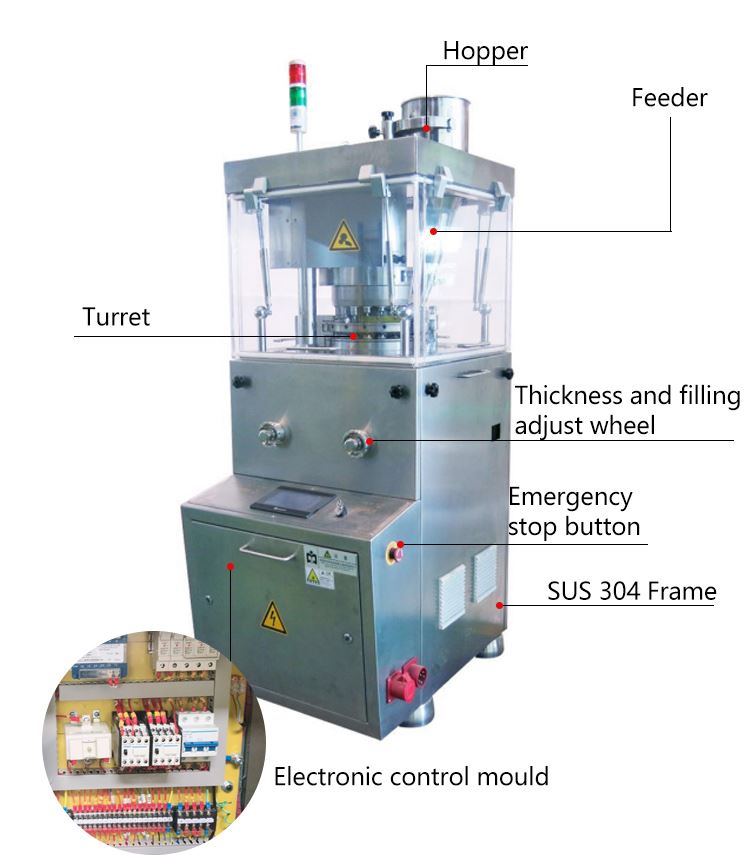

Features:
1.This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets. 2.During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted. 3.The mechanical buffer unit will prevent punches and apparatus from overload damage. 4.A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused. 5. With oil seal ring on punches, prevent oil from pollution tablet and powder leakage. 6. With dust seal ring on punches, avoid powder leakage from turret table. 7. It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate. 8. It is equipped with overload protection device, when pressure overload, it can stop automatically.
