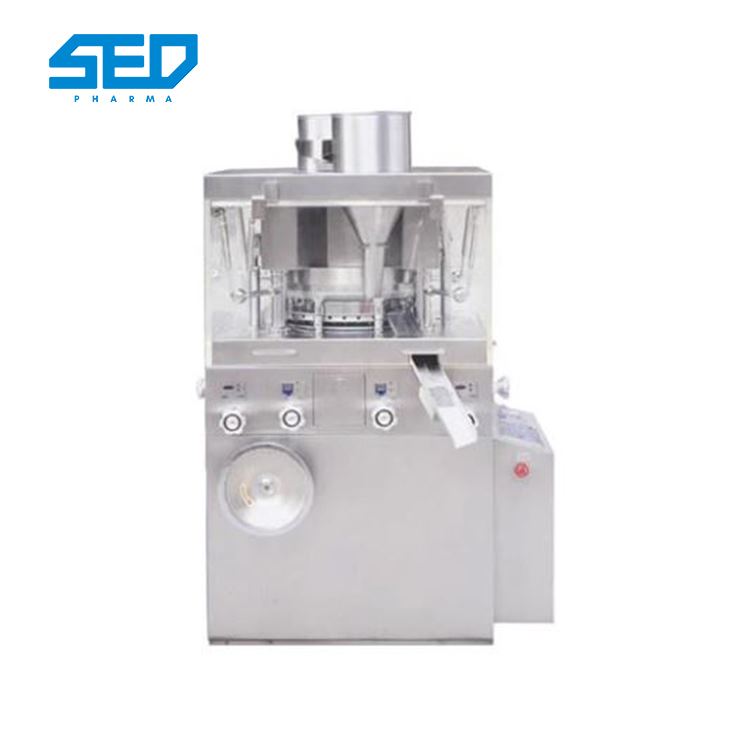

Punch Tablet Press Machine
Product description
The tablet press is a single compression machine with automatic rotation and continuous tableting, used to compress granular raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry, but also in the chemical industry, food, electronics and other industries.
The outer shell adopts a completely enclosed form. It is made of stainless steel. The inner surface of the table is made of stainless steel. The surface of the turret is specially treated to keep the surface gloss and avoid cross-contamination, which meets GMP requirements.
所有控制器和操作部分是合理的arranged. The frequency conversion governor is used for electrical speed control, which is convenient to operate, stable in rotation, and high in safety and accuracy.
characteristic
1. Maximum pressure is 80KN.
2. Maximum tablet diameter reaches φ23mm.
3. Hman-machine interface PLC touch screen operation.
4. Pressure display, output display, rotation speed display.
5. It is a preferred product for laboratories and small batch production.
parameter:
Model |
SED-8 |
Punch quantity(sets) |
8 |
Max. tablet pressure(kn) |
80 |
Max. tablet diameter(mm) |
23 |
Max. filling depth(mm) |
15 |
Max. tablet thickness(mm) |
6 |
Turret rotation speed(r/min) |
5-30 |
Production capacity(Pc/h) |
14400 |
Motor power(kw) |
2.2 |
Overall size(mm) |
820*650*1550 |
Machine weight |
840 |
