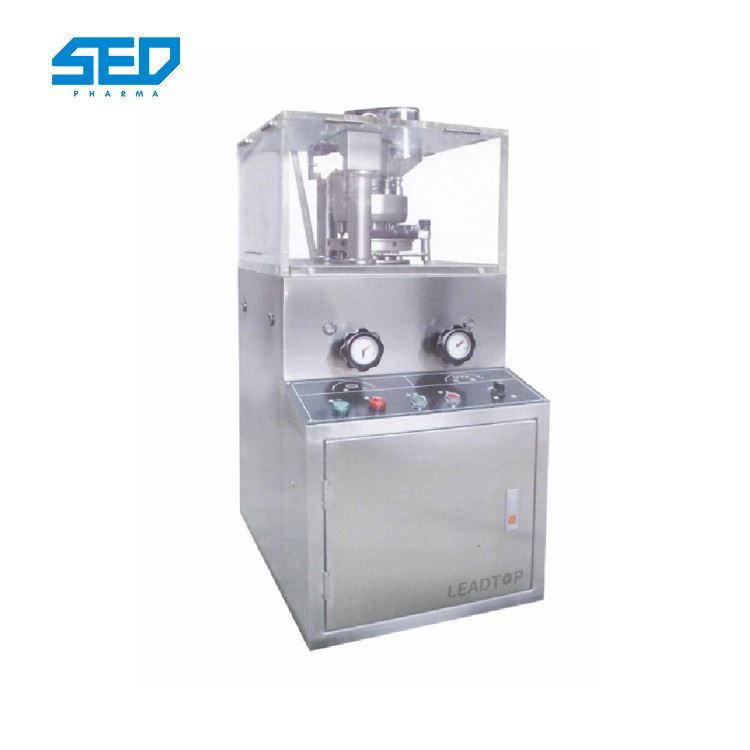

Pill Tablet Rotary Tablet Pressing Machine

Pill Tablet Rotary Tablet Pressing Machine Application:That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc.

Pill Tablet Rotary Tablet Pressing Machine

Application:

The tablet press rotary tablet press is used for the single-press automatic rotation of the compression molding equipment. It has the function of compressing granular materials into round or irregular shaped tablets, such as candies and calcium tablets, with letters printed on both sides .

Tablet Pressing Machine

Main Technical Data:

Stations (unit)

9

Max. Thickness of tablet (mm)

6

Maximum compression (KN)

60

Rotary speed of the turret (rpm)

30

Max. Diameter of tablet to be produced (mm)

13

Max. Filling depth (mm)

15

Capacity of the tablets (max tablets/hour)

16200

motor power (kw)

2

Net weight of the machine (kg)

260



Features:

1. It is adopts the import Frequency Timing with Electromagnetism Clutch.

2. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.

3. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.

4. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust

Tablet Pressing Machine

Tablet Pressing Machine

Tablet Pressing Machine

Tablet Pressing Machine

Tablet Pressing Machine
