Electric Rotary Effervescent Tablet Candy Making Machine

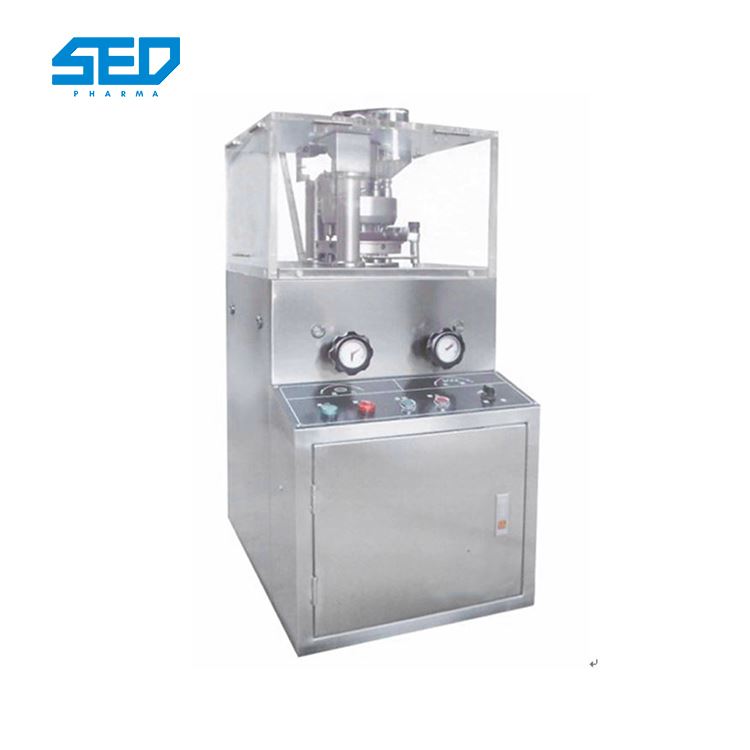

Electric Rotary Effervescent Tablet Candy Making Machine Product Description That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.

Electric Rotary Effervescent Tablet Candy Making Machine

Main Technical Data:

Max。平板厚度(毫米) 6mm
Max。Tablet Diameter(mm) 13mm
Capacity (pcs/h) 12000 pcs/h
Stations (unit) 5
Thickness of the die (mm) 28
Maximum compression (KN) 60
The diameter of the circle of the central pitch of upper &lower punches on the turret 320mm
Max。Diameter of tablet to be produced (mm) 13
Rotary speed of the turret (rpm) 10-40
Max。Filling depth (mm) 22

Tablet Candy Making MachineTablet Candy Making Machine

Tablet Candy Making Machine

Features:

1. The machine material is fully enclosed stainless steel, and the surface of the turntable is polished to avoid cross-contamination and comply with GMP standards.


2. Equipped with plexiglass perspective windows to observe the production of tablets. Each perspective window can be fully opened and is easy to clean and maintain.


3. Use imported electromagnetic clutch timing.


4. The hydraulic system keeps the working pressure stable, and automatically stops when the pressure is overloaded.


5. The transmission system is equipped with an oil tank, running under oil, heat dissipation and wear resistance.


6. It is also equipped with a dust collector to avoid the discharge of dust and recycle it to save dust.

Tablet Candy Making Machine

Tablet Candy Making MachineTablet Candy Making Machine

Tablet Candy Making Machine

Tablet Candy Making Machine

FAQ:
Q1:Are You A Factory or A Trading Company?
A: We Provided Perfect OEM and After-sale Service.

Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan .

Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine .

Q4:How Can I Know Your Machine Is Designed For My Product ?
A:You Can Send Us Samples of Your Product and We Test It On Machine.

Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying Methods .

Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated .

Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
