Dishwashing Tablet Press Machine

Dishwashing Tablet Press Machine Application:That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc.

Dishwashing Tablet Press Machine

Dishwashing Tablet Press Machine

Application ofTablet Press Machine

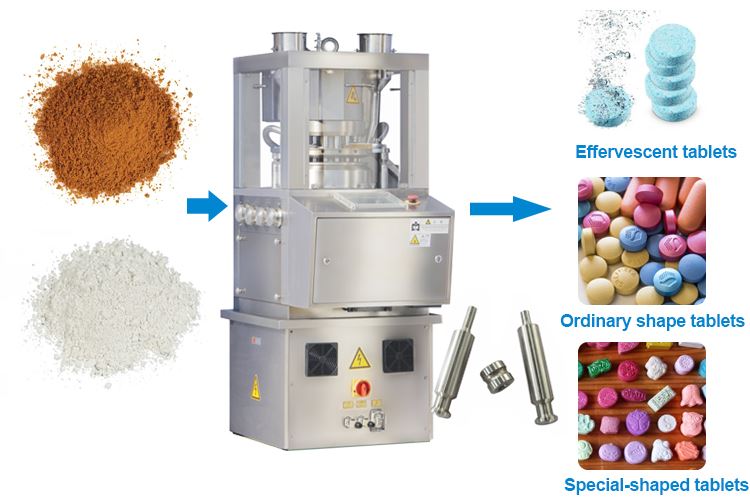

This machine is a sing-pressing type, continuous automatic tablet press for pressing granular raw materials into tablets. It’s mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.

SED-SS226-8PLC 02

Main Technical Data of Tablet Press Machine

Model ZPSS226-8PL

Stations (unit)

8

Maximum compression (KN)

60

Max。Diameter of tablet to be produced (mm)

10

Capacity of the tablets (max tablets/hour)

14000

Net weight of the machine (kg)

1000

First Layer Depth of Filling (mm) 7
Second Layer Depth Filling (mm) 0.5-8
Rotary speed of the turret (rpm) 30
Max。Filling depth (mm) 15
Motor power (kw) 2.2

Features of Tablet Press Machine

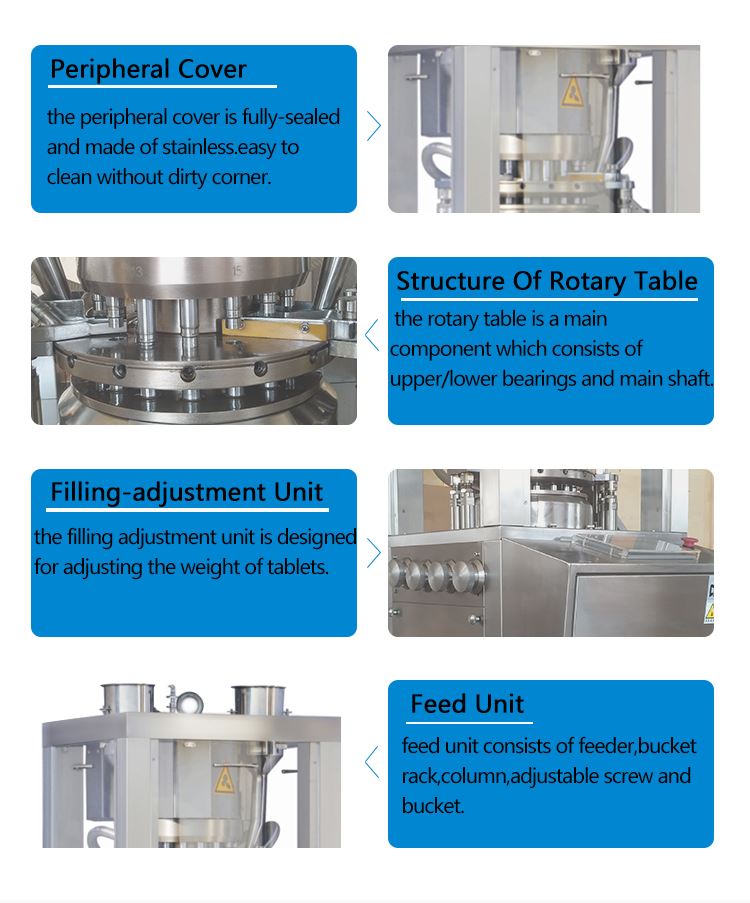

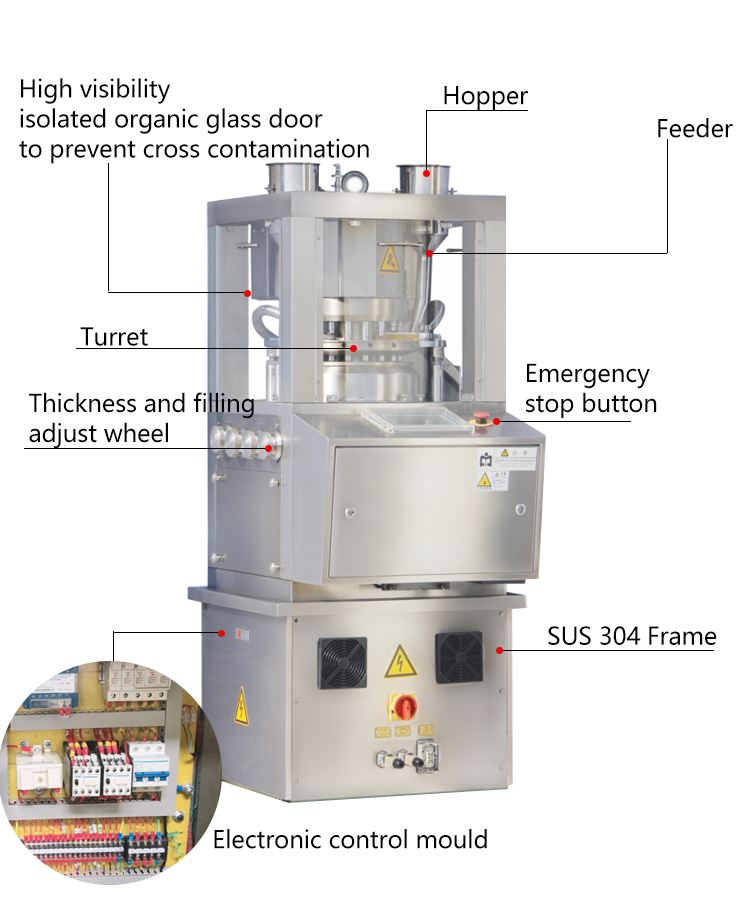

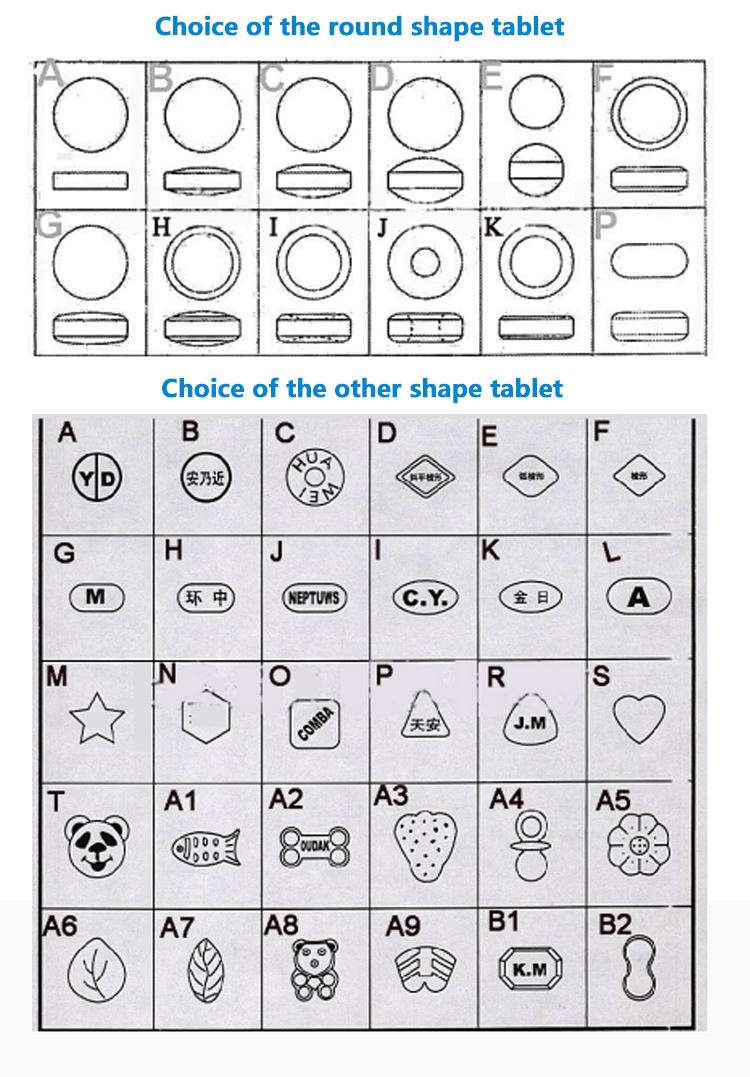

1.The outside part of the machine is fully-enclosed and it’s made of stainless steel to meet GMP standard. 2. It has transparent windows so that press condition can be observed clearly and windows can be opened. 3. Both can press round and shaped tablets, and have impressed letters on both sides. And double color tablet is available. 4. All the controller and devices are located in one side of the machine, so that it can be easier operate. 5. An overload protection unit is included in the system to avoid the damage of punches and apparatus when overload occurs. 6. The machine’s worm gear drive adopts fully-enclosed. Oil-immersed lubrication with long service life to avoid cross pollution.

产品Show of Tablet Press Machine

SED-SS226-8PLC 06SED-SS226-8PLC 07平板电脑的形状
