Cheap Pill Tablet Press Machine Product description This machine is a double press automatic rotation for shape-pressing equipment, which has the function of pressing the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets with letter printing and etc,which is widely suitable for the Industries of...

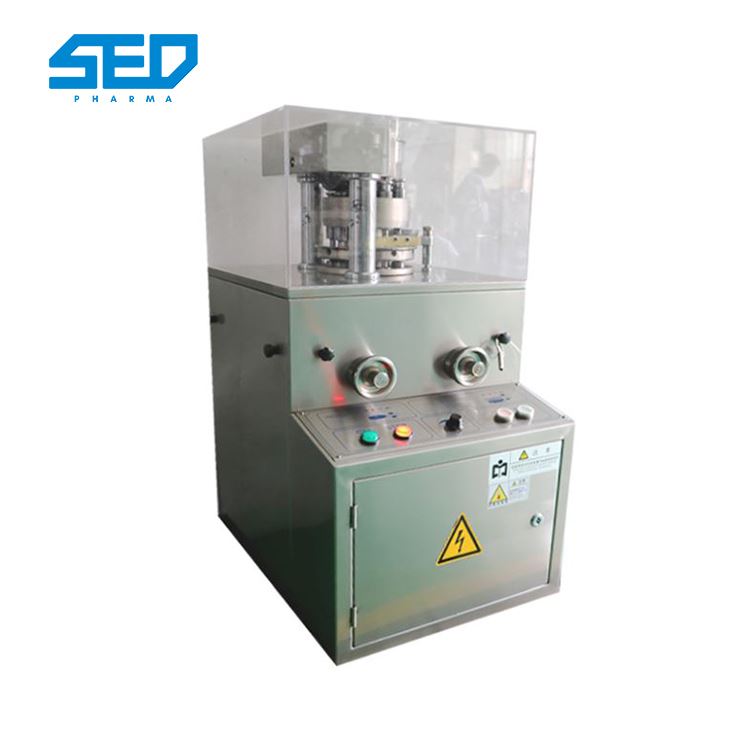

Cheap Pill Tablet Press Machine
产品description

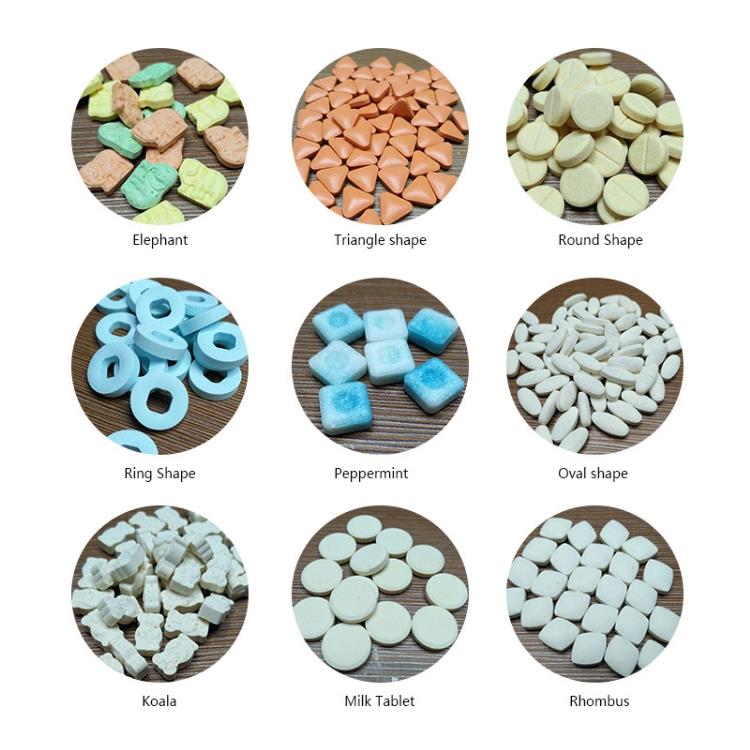

This machine is a double-press automatic rotation of the pressing equipment, which has the function of pressing grain materials or powder into round or irregular shaped tablets, such as candies, calcium tablets with letters, etc., and is widely used in pharmaceuticals and chemical industries Food, plastic electronics, powder metallurgy and other industries.
parameter:
Stations (unit) |
31 |
Thickness of the die (mm) |
22 |
Maximum compression (KN) |
80 |
The diameter of the circle of the central pitch of upper lower punches on the turret |
320mm |
Max。Diameter of tablet to be produced (mm) |
25 |
Rotary speed of the turret (rpm) |
14-35 |
Max。费尔ling depth (mm) |
20 |
Capacity of the tablets |
60,000-100,000pcs |
Max。Thickness of tablet (mm) |
9 |
Area to occupy (mm2) |
2230年x2250 |
characteristic
1.The material of the machine is made of stainless steel with totally closed,the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

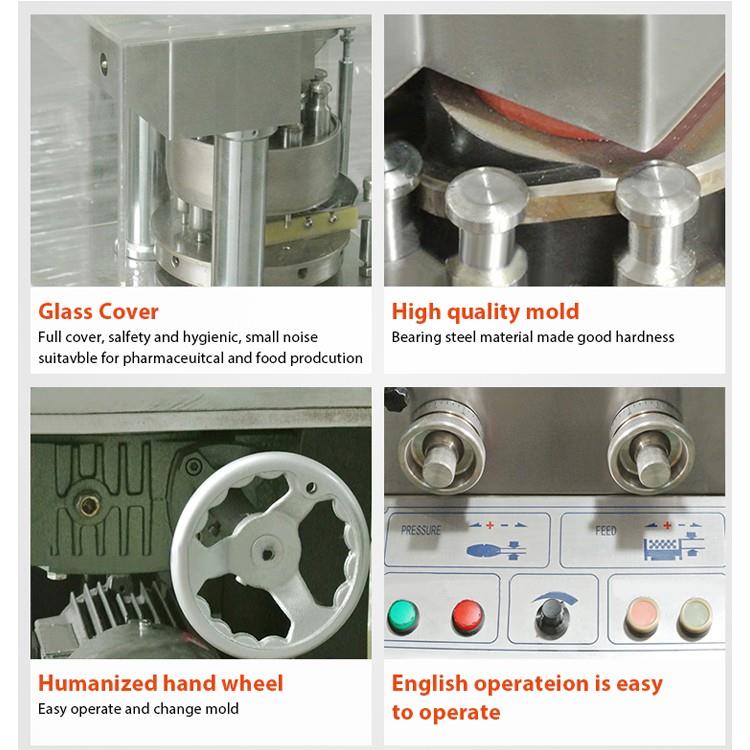

2.It is equipped with Organic-glass perspective window for tablet producing observation.Each perspective window could be fully opened and easy for cleaning and maintenance.
3.It is adopts the import Frequency Timing with Electromagnetism Clutch.
4.Driving system is equipped with oil box and running under oil,easy for heat dissipation and wear-resistance.
5.It is equipped with Dust Collector as well,which avoid the dust emission,and recycle to save dust.
