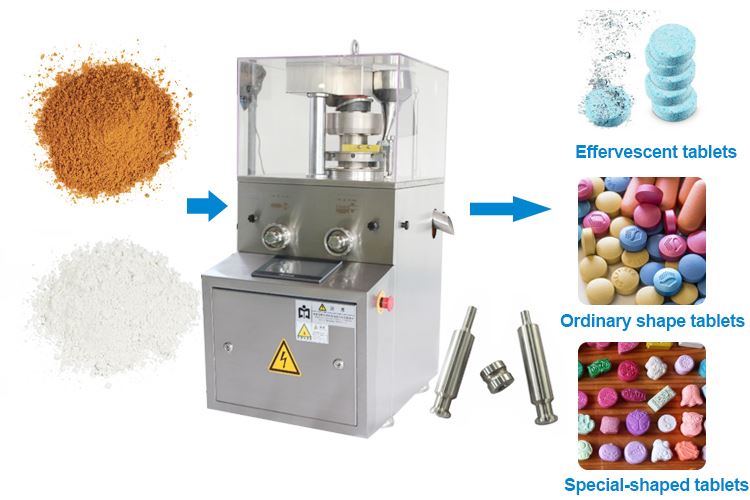

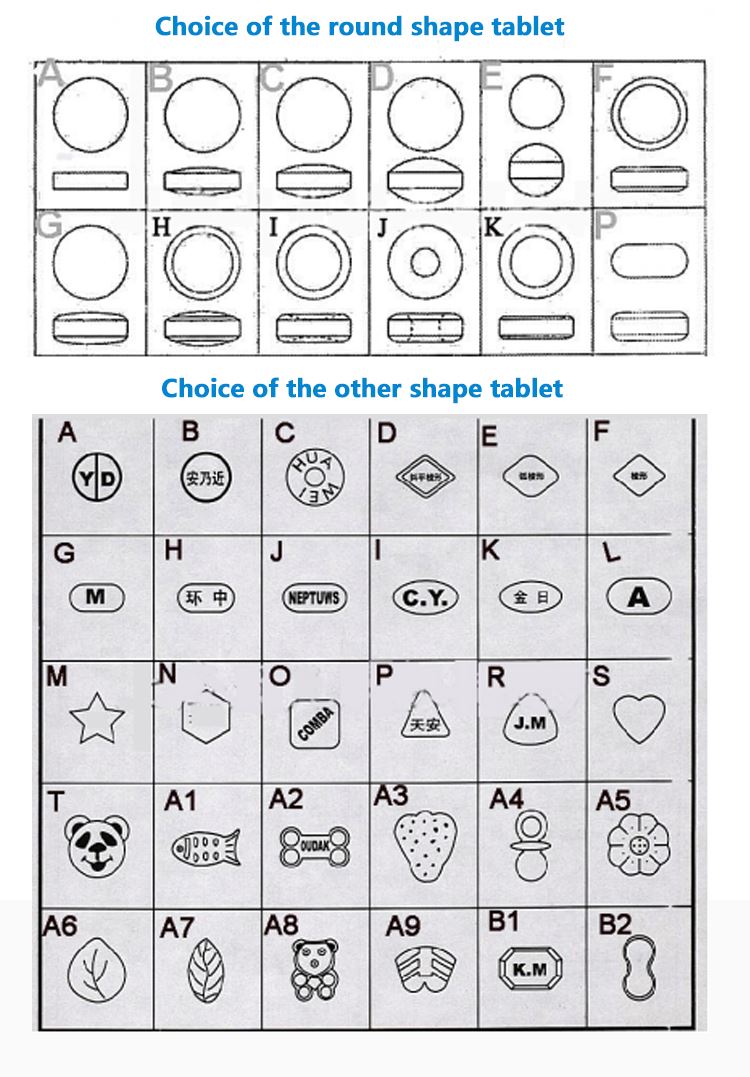

Automatic Tablet Making MachineApplication:That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc.
Tablet Making Machine Automatic
Application of Tablet Press Machine
This machine is a new generation product of our factory, and it is a continuous and automatic rotary tablet press for pressing various kinds of different shape tablets and also plain tablets. It is mainly used
in pharmaceutical industry and the chemical, food, plastics, powder, metallurgy and electronic industries.
Main Technical Data of Tablet Press Machine
| Model | ZPT130-7B |
ZPT130-9B |
Stations (unit) |
7 |
9 |
Maximum compression (KN) |
50 |
50 |
Max. Diameter of tablet to be produced (mm) |
20 |
20 |
Capacity of the tablets (max tablets/hour) |
10500 |
13500 |
Net weight of the machine (kg) |
300 |
300 |
| Max. Thickness of tablet (mm) | 6 | 6 |
| Rotary speed of the turret (rpm) | 25 | 25 |
| Max. Filling depth (mm) | 15 | 15 |
| Motor power (kw) | 2.2 | 2.2 |
Features of Tablet Press Machine
1. Design of GMP. 2. High quality all stainless steel constructions. 3. Reliable safety sealing system and dust-proof system. 4. High visibility isolated door to prevent cross contamination. 5. Easily remove parts for quick machine`s maintenance.

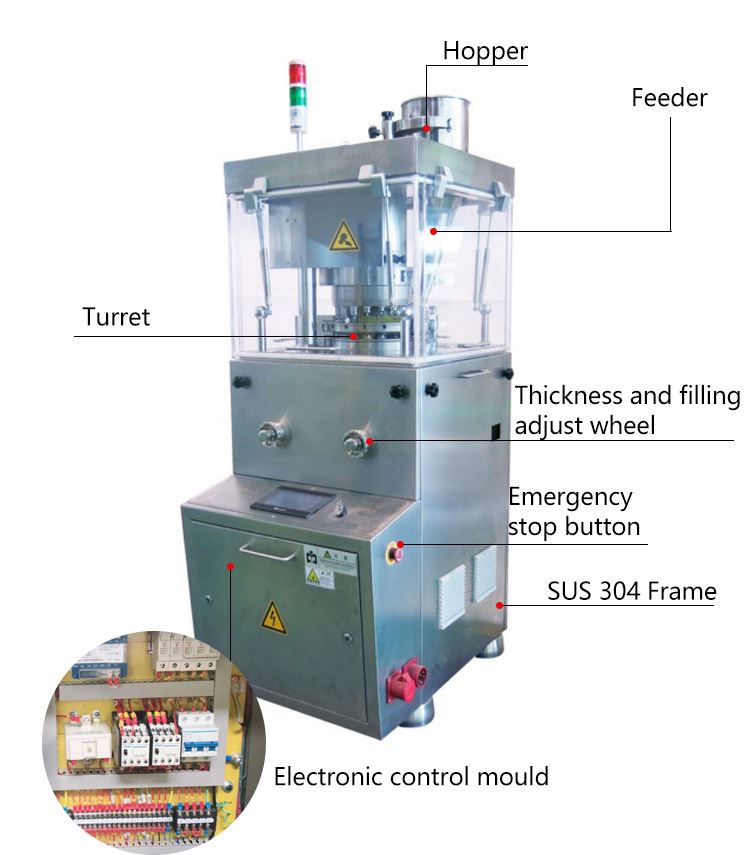

Working Principle of Tablet Press Machine
The working principle of the rotary tablet press is that the power is provided by the motor, conveyed to the V-belt pulley through the stepless speed regulating wheel, and then driven by the friction wheel in
the clutch attached to the transmission shaft to drive the worm shaft, which is transmitted to the worm wheel under the turntable through the worm, thereby driving the turntable. turn. On the one hand, the
punch rod moves in a circular motion with the turntable, and on the other hand, it moves up and down along the same upper and lower guide rails, and completes the continuous process of feeding, filling,
tablet pressing, and tablet discharging through the feeding device, filling device, tablet pressing device and other mechanisms.

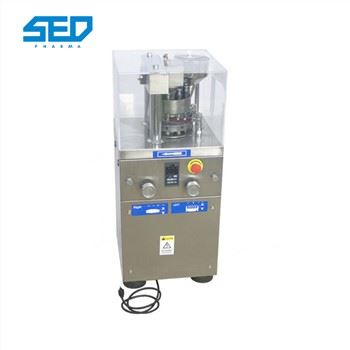

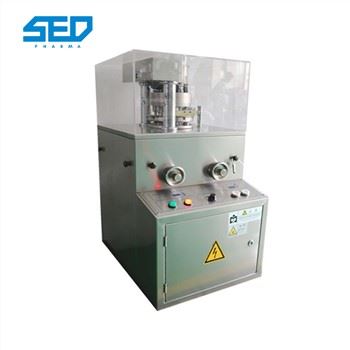

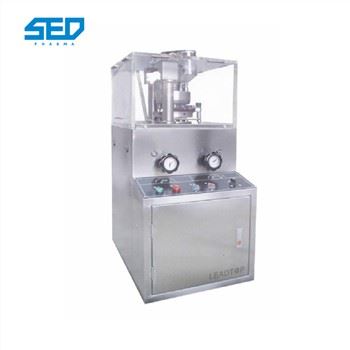

Product Show of Tablet Press Machine
