Tablet Coating Machine

Tablet Coating Machine

1. Press the touch button on the computer control panel to complete all operations. The operation panel is a completely sealed light touch film interface, and the performance of the host is reliable and stable.

2. The streamlined mixer drives the tablet to rotate conveniently, smoothly, without debris, and no edge peeling, which improves the quality of the finished product.

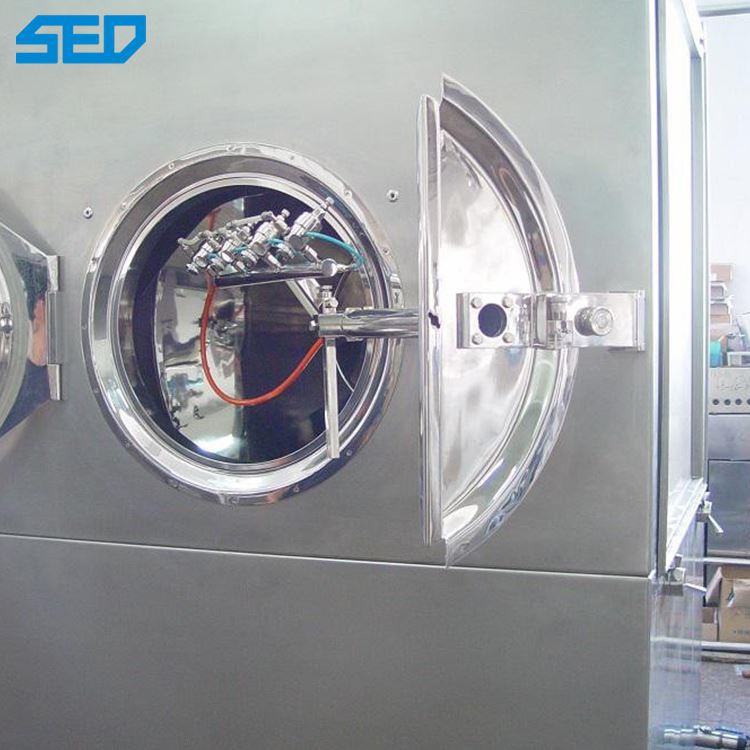

3. Automatic feeding device prevents cross contamination, convenient feeding, high efficiency and complete direction. The paint boiler with high-pressure spray gun can rotate 1800 degrees, and the exhaust port and exhaust port of the cleaning spray gun are automatically rotated in all directions. It is more convenient to clean without dead ends.

4. Iwata spray gun is the most imported from Japan. Simple operation, easy to master, flexible control.

main parameter

Item/model		BGB1000	BGB600	BGB400	BGB150	BGB80	BGB40	BGB10
Loading Capacity (kg/batch)		1000kg	600kg	400kg	150kg	80kg	40kg	10kg
Drum Revolution (r/min)		2.0-12rpm	2.0-12 rpm	0-13rpm	2.1-14 rpm	2.0-16 rpm	2.0-18 rpm	3.0-19rpm
Main Machine Power		7.5KW	4KW	3KW	2.2KW	1.5KW	1.1KW	0.55KW
Diameter of coating drum		1800mm	1580mm	1580mm	1200mm	930mm	780mm	500mm
Power of air exhaust cabinet motor		11KW	11KW	7.5KW	5.5KW	3KW	2.2KW	0.75KW
Air exhaust flow		18000m3/h	15450 m3/h	10000m3/h	7419 m3/h	5268 m3/h	3517 m3/h	1285m3/h
Power of hot air cabinet motor		7.5KW	4KW	2.2KW	1.5KW	1.1KW	0.75KW	0.37KW
Hot air flow		10650 m3/h	6500 m3/h	3517 m3/h	2356 m3/h	1685 m3/h	1285 m3/h	816 m3/h
Weight of main machine		2000 kg	1600 kg	1000 kg	850 kg	600kg	500kg	200kg
Clean air	Pressure	0.4MPa	≥0.4MPa	≥0.4MPa	≥0.4MPa	≥0.4MPa	≥0.4MPa	≥0.4MPa
	Air consumption	2.5m3/min	2 m3/min	1.5 m3/min	0.7 m3/min	0.35 m3/min	0.2 m3/min	0.2m3/min
