Hand Operated Semi Automatic Powder Capsule Filling Machine

Hand Operated Semi Automatic Powder Capsule Filling Machine Product Description SED-BJ-II Semi-Automatic Capsule Filling Machine The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc.

Hand Operated Semi Automatic Powder Capsule Filling Machine

Hand Operated Semi Automatic Powder Capsule Filling Machine

Product Description

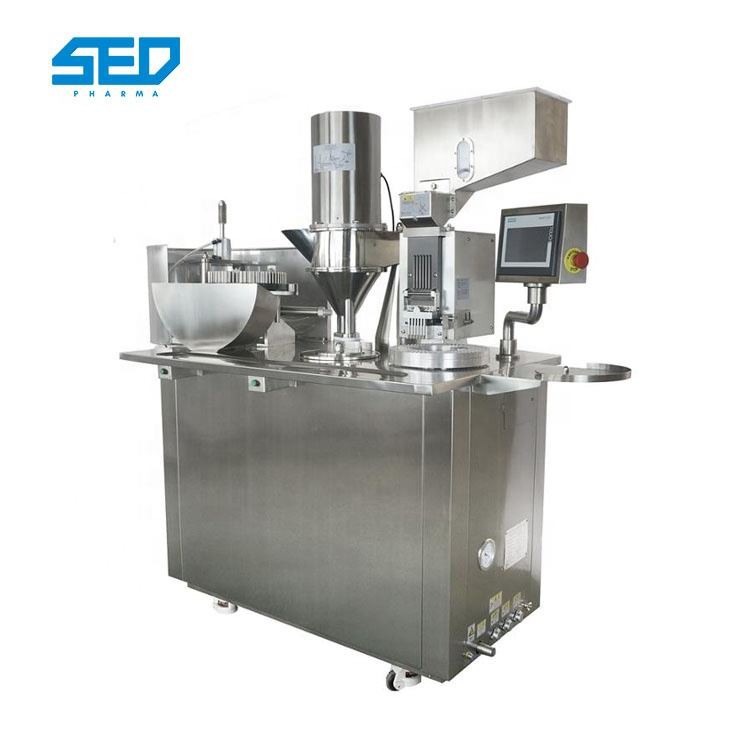

SED-BJ-II manual semi-automatic powder capsule filling machine This product is a special capsule filling machine, suitable for small and medium-sized pharmaceutical factories, hospital preparation laboratories, etc. The machine adopts programmable control system, touch screen operation, stepless speed change, and electronic automatic counter.


And automatically complete positioning, separation, filling, locking and other actions. The measurement is accurate and easy to operate. The whole machine is made of stainless steel and is suitable for capsules containing powder and grains.

Capsule Filling Machine

Model:

SED-BJ-II

Capsule Size:

#00-#5

Vacuum Pump:

XD-040(40m³/hour)

Capacity Of air compressor:

0.1m³/min

Noise:

Less than 60dB (A)

Overall Dimensions:

1200*700*1600mm

Packing Dimensions:

1800*800*1800mm

Net Weight:

330Kg

Gross Weight:

525Kg

Capacity:

12,000capsules/hour

Power Supply:

380V 50Hz 2.2Kw

Products Show

01

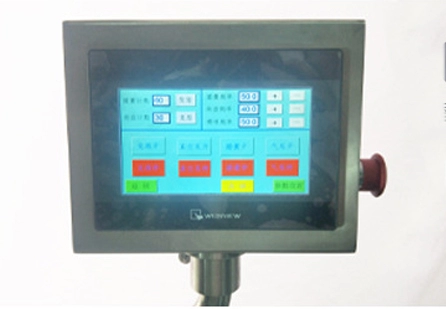

Programmable touch screen

02

√304 stainless steel material√Automatic√Fast speed√High precision√Safety protection device and emergency stop switch

03

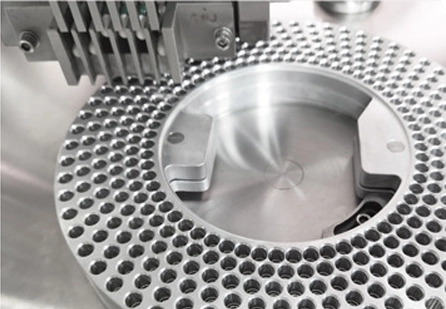

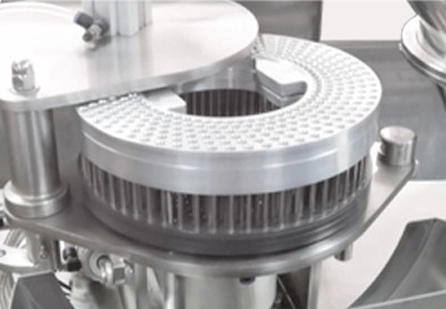

The surface of the capsule plate is polished, and the die hole is positioned with high precision. which improves the utilization rate. Strong, light weight, durable

04

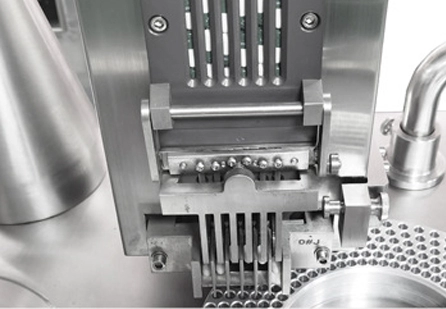

The capsule locking station adopts automatic horizontal locking.It uses the cylinder starting principle to lock, which saves human resources and reduces the process of locking the capsule.

05

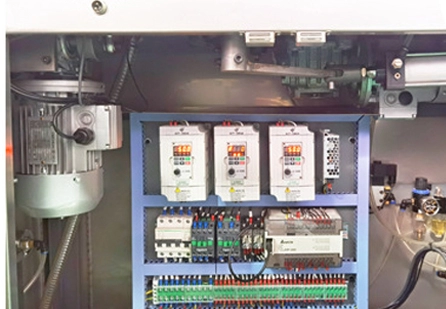

Well-known electrical appliance brand, neat wiring, convenient for inspection and maintenance.

06

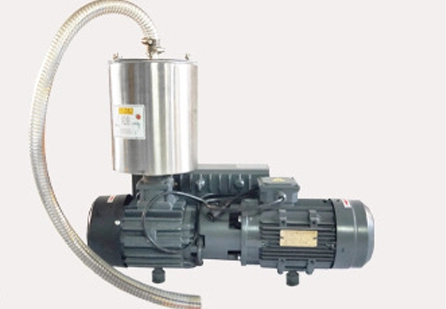

The suction type vacuum pump device has low noise and no pollution, and it is convenient for the capsule device to separate the capsule body and the cap.

Feature

1) It adopts Cycloid Motor for making machine in lowest sound running. There three Cycloid Motor in this machine. 2) SED-BJ-II adopts Touch Button for operating. It will be hard for making powder into Controlling System. 3) Easy for Changing Mould from Size 00 to 5#. 4) The machine is whole Body stainless steel. Capsule Feeder is Copper, Capsule Disk is Aluminum Disk, Capsule Locking position Copper. (For Detailed please see following Mould List) 5)We call the Semi Automatic Capsule Filling Machine operating THREE STEPS, Operator is easy to know how to Separate Capsules, Filling Capsules, Locking Capsules means Output.

FAQ:

Q1:Are You A Factory or A Trading Company?

A: We Provided Perfect OEM and After-sale Service.

Q2:Where is Your Factory? How Can I Visit Your Factory?

A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan.

Q3:Can You Send Me the Video To Show The Machine Works?

A:Certainly, We Have Made Video of Every Machine.

Q4:How Can I Know Your Machine Is Designed For My Product?

A:You Can Send Us Samples of Your Product and We Test It On Machine.

Q5:How Can I Pay My Order?

答:通常我们接受信用证,D / A, D / P、T / T, Western Union, MoneyGram,Cash Paying Methods.
