Product Description Fully automatic powder capsule filling machine It uses hole plug filling, intermittent operation and frequency control. It is suitable for the entire capsule filling process: capsule feeding, separation, filling (filling of waste capsules), sealing, perfect capsule output, suitable for powder and granular capsules.
Fully Automatic Powder Capsules Filling Machine
Product Description of Capsule Filler
Automatic capsule filling machines are designed to fill hard gelatin capsules with various powders, pills and tablets.
The machine is easy to operate, compact in design and operates on the tamping principle. The machine can fill capsules with sizes from "00" to "5".
Feature of Capsule Filler Machine
Completely automatic process
cGMP model complying to 21CFR Part 11
All powder contact parts are in Stainless Steel 316 & Non contact parts are Stainless Steel 304
Filling of powders/ pellets/ tablet possible in different combinations
All parameters can be controlled through PLC
Quick change over from one size to another size possible by special gauges
Tamping principle of filling ensures better accuracy of filling
Machine is operator friendly
Powder level in filling chamber is controlled by sensor to avoid powder fill under weight

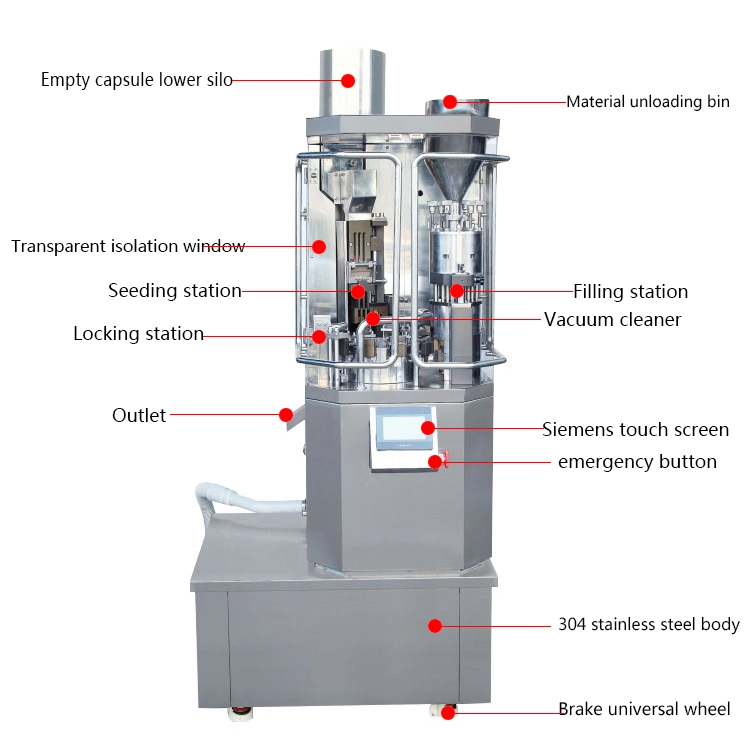

Photo Show ofCapsule Filler
Machine parameters ofCapsule Filler
Model |
NJP-400 |
NJP-200 |
Output(pcs/min) |
400 |
200 |
NO of Filling hole |
3 |
2 |
Capsule filling hole |
00#-4# |
00#-4# |
Total Power |
3kw |
3kw |
Weight(kg) |
350kg |
350kg |
Dimension(mm) |
700×570×1650mm |
700×570×1650mm |
Product Details ofCapsule Filler

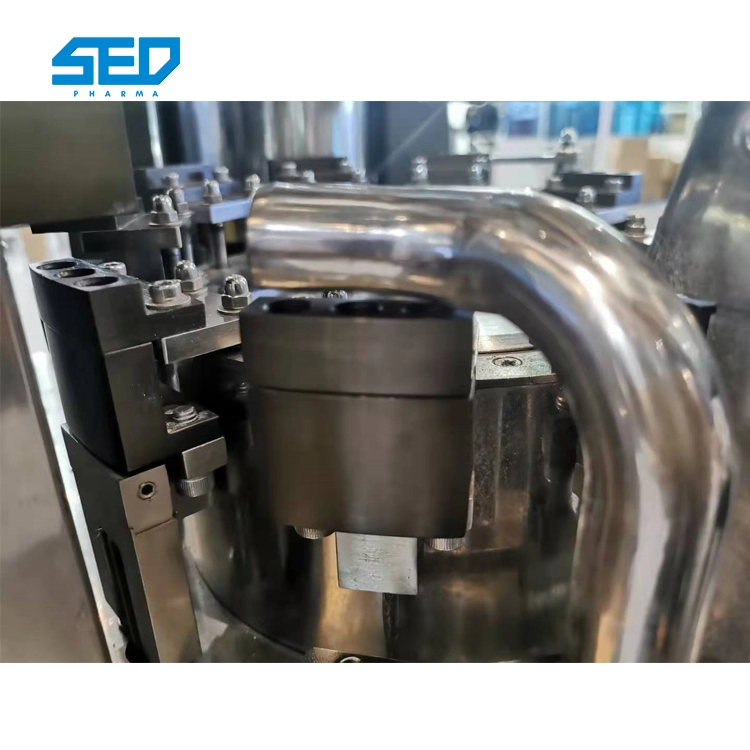

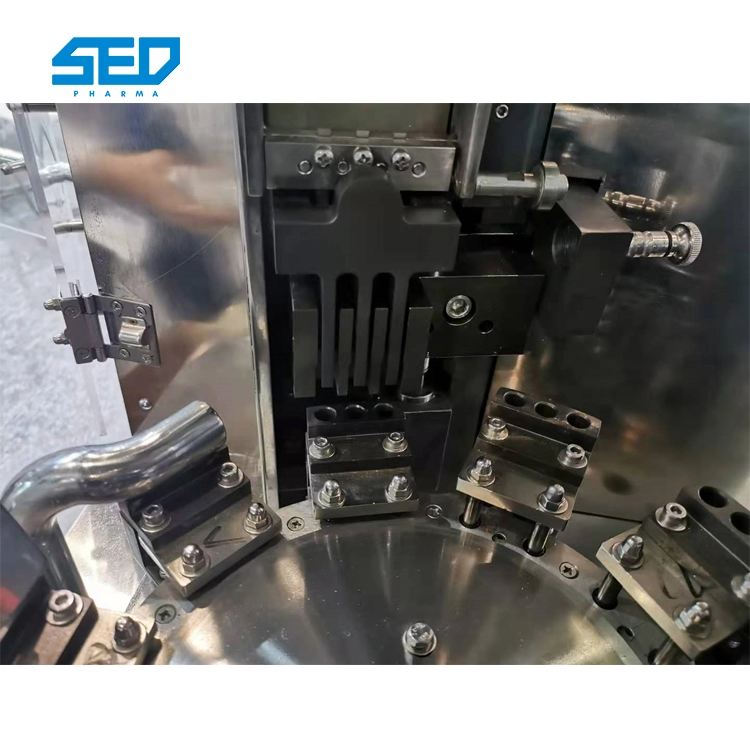

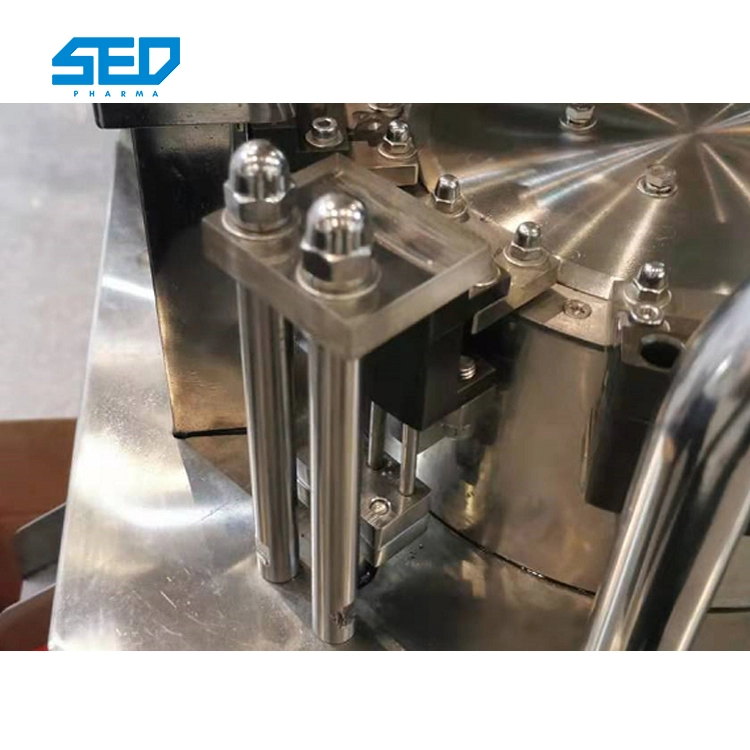

Separation of capsule body and cap

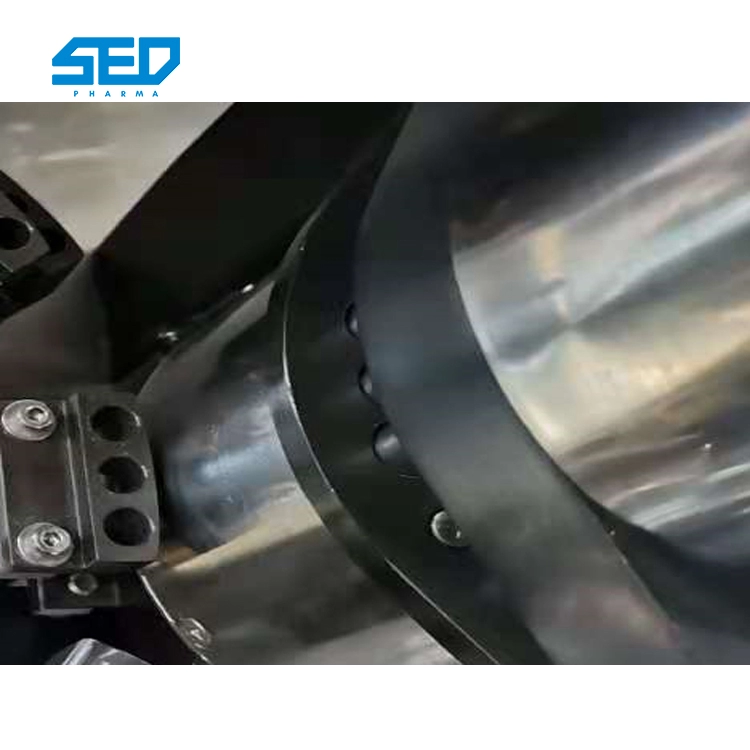

Powder filling
Weeding of capsule
Lock the capsule
Application ofCapsule Filler
It is used in medicine, medicine, chemical industry (powder, pill, granule, pill), and can also be used for filling vitamins, food, veterinary drugs, etc.
