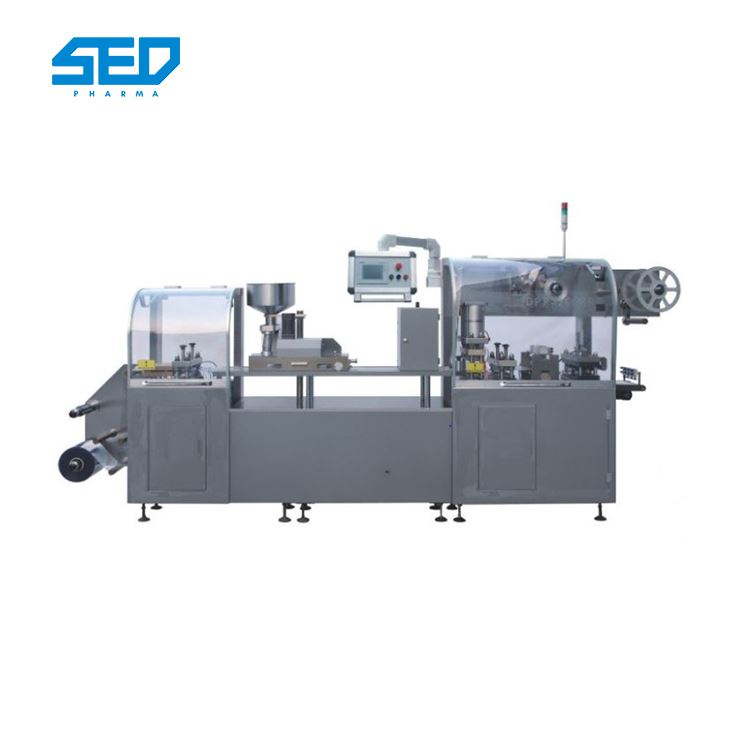

Syringe Blister Packing Machine

Syringe Blister Packing Machine

The structure is rational.And elements of electricity and gas are all from Siemens and SMC,making sure that the machine can run stably for along time. Adopt humane design,combination of split,and can enter into lift and cleaning room. The installation of mold adopts fast-installing screw.Travel...
Send Inquiry
Chat Now
Description

Syringe Blister Packing Machine

The structure is reasonable. Electricity and gas elements come from Siemens and SMC to ensure long-term stable operation of the machine.


It adopts humanized design and split combination, which can enter elevator and clean room.


The mold is installed with quick installation screws, and the stroke is controlled by mathematics, which is convenient for changing specifications.


与vision suppression function (optional), to ensure the integrity of the product.


Keep the position of the molding material to meet the requirements of the process production.


To ensure safe operation, each station has a visible safety cover.


It can connect to other devices and work together.

Syringe Blister Packing Machine

parameter:

The technique data

Name

blister packing machine

Type

DPP-260XF

Parameters

Punching frequency: 25-50times/min(AL-PVC) 15-35times/min(AL-AL)

Material and specification

PTP :width260mm thickness0.02-0.03mm;forming material:width260mm thickness0.50-0.15mm

Adjustable range of travel

Traction trip:30-120mm Station fine-tuning:punching:0-100mmBatch:0-50mm

Forming:0-100mm Heat sealing:Fixed reference point

Maximum forming depth(mm)

28mm

Maximum forming area(mm2)

260×120×28mm

Total power

5.7kW 380V 50Hz

Compressed air pressure(MPa)

0.5-0.7MPa

Air-compressor(m3/h)

≥ 0.22

Noise (dB)

75dB

Dimension(L×W×Hmm)

4200×650×1640mm

体重(公斤)

1500kg

Syringe Blister Packing Machine

Syringe Blister Packing Machine

Syringe Blister Packing Machine

Syringe Blister Packing Machine

Syringe Blister Packing Machine

Syringe Blister Packing Machine

Syringe Blister Packing Machine
