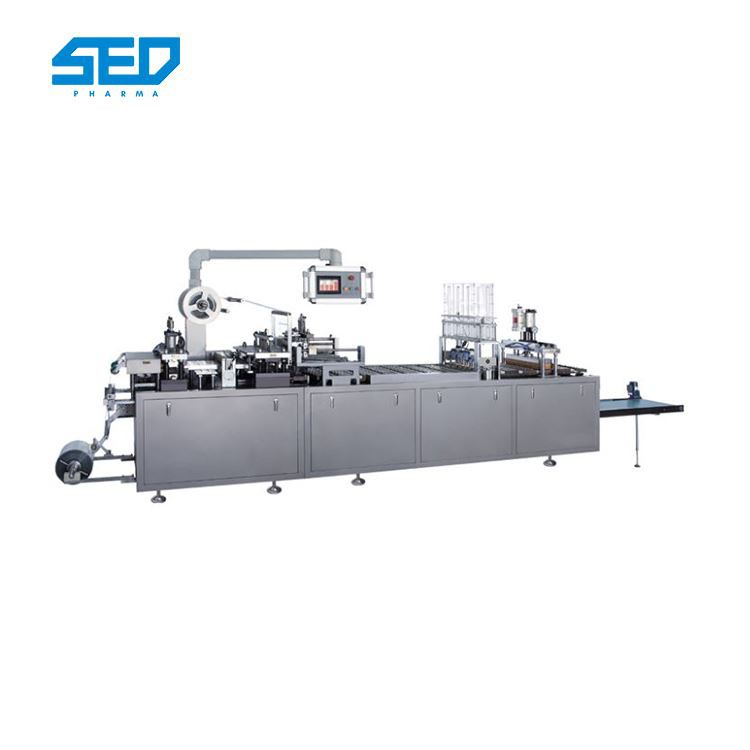

Medicine Blister Packing Machine

Medicine Blister Packing Machine

这一系列bliter packaging machines is a new equipment developed by our company's technical department on the basis of more than ten years of mature medical packaging machinery technology.

It has absorbed the working principles of similar packaging machines at home and abroad. It has the characteristics of advanced technology, complete functions, reasonable work flow, simple operation and convenient maintenance.

characteristic

A. Mechanical transmission, servo motor driving, encoder control, reasonable Structure, easy operation.

B. Rotating table type heat sealing which will improve the sealing result, reduce the mould expense and help to change the mould conveniently.

C. 304 stainless steel frame, beautiful appearance, convenient for cleaning.

D. PLC control system, frequency speed adjust, which will help to reduce the noise And improve the running stability of the machine.

E.Photoelectrical control, auto detection.

F. Separated card feeder, which will reduce the labor force.

G. The whole machine is separately designed, it is convenient to delivery with lift.

H. To design the mould and auto feeding method according to the product shape.

parameter:

Model	SED-300	SED-500
Maximum size of card	300×150mm( can be customized according to the demand of customer)	480×200mm( can be customized according to the demand of customer)
Maximum size of PVC	300×150mm( can be customized according to the demand of customer)	480×200mm( can be customized according to the demand of customer)
Cutting frequency	15-35 times/ minute	12-25times/min
Travel range	40-150mm	40-200mm
Air pressure	0.5-0.8Mpa
Air flow	≥0.5m3/min
Power supply	380VAC/3phase/50Hz; 220VAC/3phase/60Hz;
Power consumption	10.5KW	11.8KW
Main motor power	1.5kW	1.KW
Machine size (L×W×H)	2960×2040×1900mm	5800×1050×1850mm
Machine weight	1500kg	2100公斤
