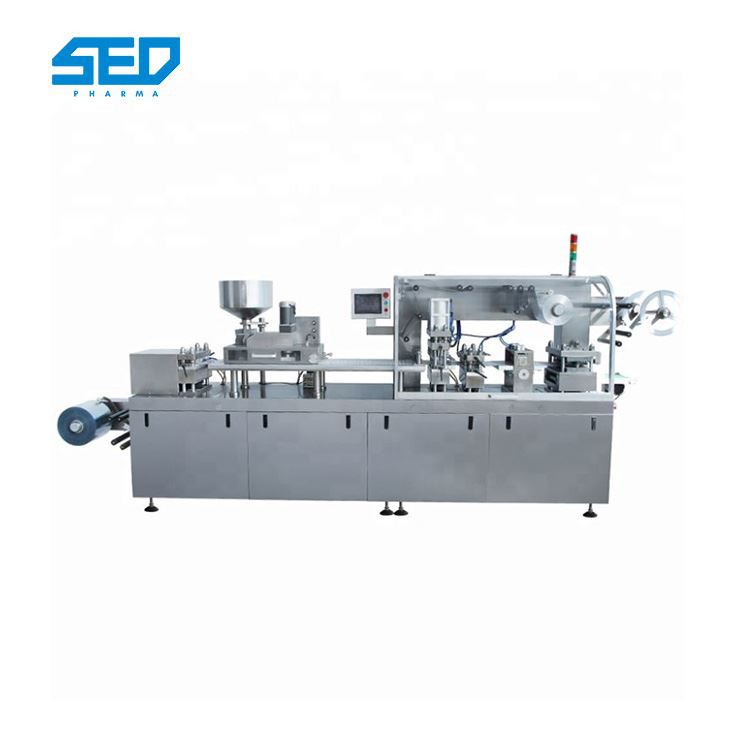

Pill Blister Packing Machine
The pill blister packaging machine is the latest development and innovation of our company, and the current technology is advanced in China. This machine is widely used in the aluminum-plastic/paper-plastic/aluminum-aluminum sealed packaging of capsules, tablets, honey pills, candy, disposable syringes or irregular products in the pharmaceutical, food, health care, medical machinery and other industries.
With the help of microcomputer PLC control, VVVF and touch screen, its high degree of automation makes it an ideal blister packaging machine for manufacturers. This product has been approved by China's provincial technical achievements.
characteristic
1. Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt mandrel orientation, each can move freely in the mandrel when shaking the hand wheel.
2. Forming positive pressure air distribution with mechanical punch, ensuring blister forming well, and could collocate exclusive Automatic Feeder. 3. Main transmission part adopts parallel axis and bevel wheel speed reducer, forming dies and hot-sealing dies and impressing dies adopt bolt orientation, with exact orientation, easy to change molds and material saving.
parameter:
Blanking (times /min) |
10-50 |
Output Capacity (sheet/hour) |
2000-4000 |
Scope of Feeding travel (mm) |
30-90 |
Forming Area & Dep (mm) |
100×85×20 |
Power Supply |
220V 50HZ 3.5KW |
Max. Foil Width (mm) |
110 |
Overall Dimension (mm) |
1800×460×1070 |
Weight(KG) |
350 |
