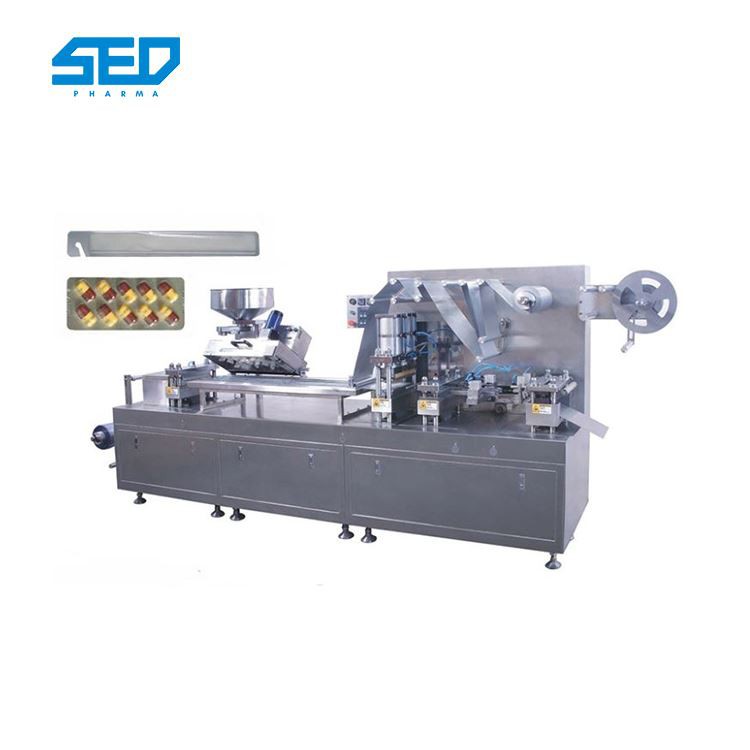

Blister Pack Machine For Sale

Hot Sale medicine automatic blister packing machine price characteristic blister packaging machine has the following characteristics: The device can be achieved: Adjustable device Mold chute ,positioning device for the version of the heating device, automatically add paper ,stamping card...

Blister Pack Machine For Sale

Pharmacy Blister Packing Machine

characteristic

泡罩包装机具有以下特点:可实现的设备:可实现的设备:可调节模具滑槽,加热装置版本定位装置,自动送纸,压制,泡罩成型,自动送料,热封,批号,成品冲压输出。


Equipped with an advanced computer control system to realize product statistics, equipment operation statistics, fault maintenance indicators and additional detection of various packaging materials, alarms and emergency automatic shutdown functions to ensure the safe and accurate operation of the equipment. The use of various simulation robots can move quickly and accurately, which can greatly reduce the labor intensity and improve production efficiency.


1. The PVC preheating starts to heat, the upper and lower heating plates are closed, and the PVC plastic plates are preheated between the upper and lower heating plates, preheated during traction, and enters the foam forming mold.


2. After the blister molding mold is fixed, the lower mold is molded on the cam under the upper limit and pressure of the cam, and then the valve is opened. The compressed air is injected into the mold cavity through the molding mold through the filtering pressure of the compressed air, and the PVC plastic is molded.


3. After the Feeder is brushed into the finished product in the bubble cavity through a brush,


4. The heat sealing mechanism bonds the required packaging materials (such as aluminum foil, PE film) and the PVC plastic film through the principle of hot pressing to achieve the purpose of heat preservation and pollution prevention.


5.批号用半透明PVC塑料薄膜密封,标有日期和批号,以显示差异。


6. The traction mechanism uses a servo motor and a ball screw mechanism to achieve a reciprocating motion mechanism. At the same time, an oil cylinder is used to move up and down with the motion to achieve the traction of the PVC sheet. The traction length and traction speed can be realized through the visual operation of the touch screen.


7. The traction arm of the punching mechanism will form a good pallet die. After the finished product is separated from the waste, the finished product will be automatically output.


8. The waste collection mechanism rolls the waste into a roll through a reel driven by a winding motor to facilitate customers to collect waste.

Pharmacy Blister Packing Machine

parameter:

Production capacity:

15-35 times / min

使用包装材料和规格

使用包装材料和规格Paper card: width 250mm thickness 0.02-0.04mm; medicinal PVC maximum width 350mm thick 0.25-0.35mm

Adjustable travel range

30mm - 140mm

包装效率

depending on area

The scope of packaging for

pharmaceutical food medical equipment and other categories.

Power supply

three-phase 380V, 50/60Hz

Maximum forming depth (mm)

24mm

Maximum forming area (mm2)

240 × 140 × 24mm

Power supply specifications

three-phase four-wire 380V 50Hz

Total power consumption (kW)

7.5KW

Compressed air pressure (MPa)

0.5-0.7MPa

Compressed air consumption (m3 / h)

≥0.8m3 / min

Cooling water consumption (m3 / h)

Ordinary tap water circulation cooling

Noise (dB)

60-70dB

Dimensions (L × W × Hmm)

4500 × 800 × 1650mm

体重(公斤)

1600kg

Motor frequency modulation capacity

0-50Hz.

Pharmacy Blister Packing Machine

Pharmacy Blister Packing Machine

Pharmacy Blister Packing Machine

Pharmacy Blister Packing Machine

Pharmacy Blister Packing Machine
