Mould For Blister Packing Machine

This new Mini-automatic Blister Packing Machine is wildly used in foodstuffs factory, diary factory etc for packing cheese, jam, honey, chocolate, milk, butter and so on. This machine adopt microcomputer programming control, frequency control, touching panel operations. It can do forming,...

Mould For Blister Packing Machine

Mould For Blister Packing Machine

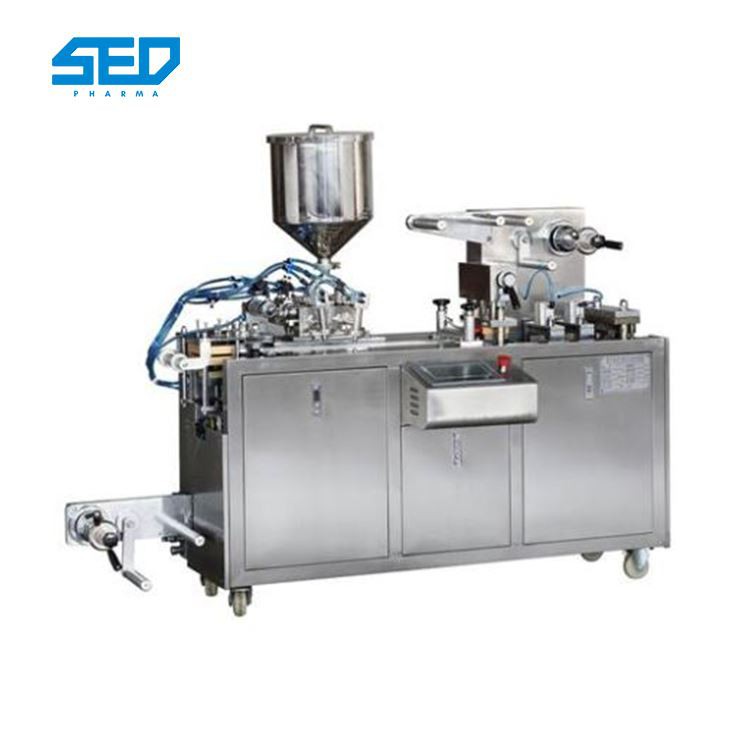

This new type of mini automatic blister packaging machine is widely used in food factories, dairy factories, etc., for packaging cheese, jam, honey, chocolate, milk, butter, etc.


This machine adopts microcomputer programming control, frequency conversion speed regulation, and touch screen operation. It can automatically complete the functions of forming, filling, appointment, sealing, cutting, convenient operation, multi-function, etc. It is an ideal blister packaging machine.

Blister Packing Machine

parameter:

Items

Specifications

Punch frequency

10-35 (times/min)

Max formed area and depth

105*80*15mm(max 25mm is customized if needed)

Standard travel range

30-80mm

Standard edition

80*57mm

Air pressure

0.4-0.6Mpa

Main Total power

380v/220v 50Hz 1.8Kw

Main motor power

0.75Kw

PET hard pieces

(0.15-0.5)*110mm

PTP aluminum foil

(0.02-0.035)*110mm

Dialysis paper

(0.02-0.035)g*110mm

Mould cooling

tap water or recycle water

Overall dimension (L*W*H)

1800*750*1700mm

Weight

600kg

characteristic

1.The key appliance of his machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer`s requirement.

2.Machine-tool track type of casting machine-base, taken these processing like backfire, maturing, high benchmark and without distortion.

3.Each box of section processed through professional equipment, to assure high precision and good ex-changeability.

4.Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. small oversize, save installation space.

5.Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between

chain or strap when it is driving.

6.Stroke can be adjust freely, widely used, ease of operation, stable running.

7.It adapts up and down net pattern concave-convex to conjugate, multi-step air cylinder,

double-heat sealing. Quality sealing.

Blister Packing Machine

Blister Packing Machine

Blister Packing Machine

Blister Packing Machine

Blister Packing Machine
