direct deal Fully automatic Mini butter blister packaging machine description It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical...

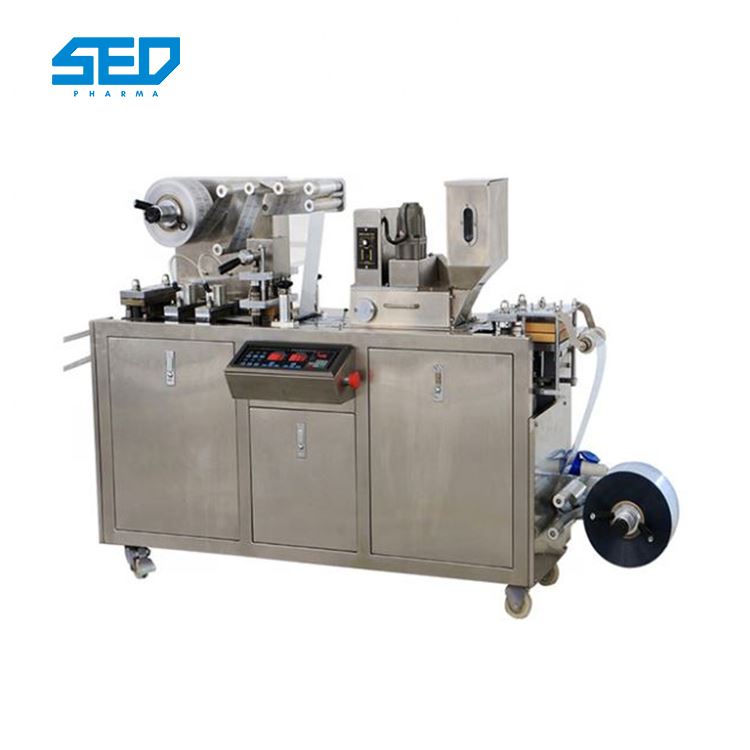

Automatic Sealing Blister Packing Machine
description
The blister packaging machine is suitable for capsules, tablets, honey pills, candies, liquids (ointments), pastes and irregular shapes of aluminum-aluminum-plastic-plastic and paper-plastic composites in the pharmaceutical, medical, food, cosmetics, medical equipment and other industries sealed package.
parameter
SPECIFICATIONS FOR DPB-88 Blister packing machine |
|||
1 |
Cutting Frequency |
Times/min |
A1-A1: 6-20 times/min A1-plastic: 20-40 times/min |
2 |
Max. Production Capacity |
Blister/h |
A1-A1: 1200 (According to standard plate 80×57) A1-plastic: 2400 (According to standard plate 80×57) |
3 |
Max. Forming Area and Depth |
mm |
Al-Al: 80× 90×14 Al-plastic: 80×1 10×26 (Standard 70×90×14) |
4 |
Travel Range |
mm |
20-100 (Can be manufactured as user's requirements) |
5 |
Air Pressure |
Mpa |
0.4-0.6 |
6 |
Standard Plate |
mm |
80×57 (Can be manufacturer red as user's requirements) |
7 |
Total Power |
/ |
380V/220V 50Hz 1.8kw |
8 |
Main Motor Power |
kw |
0.75 |
9 |
PVC Rigid Sheet |
mm |
0.15-0.5×80 |
10 |
PTP Aluminum Foil |
mm |
0.02-0.035×80 |
11 |
Dialysis Paper |
mm |
50-100g×80 |
12 |
Mould Cooling |
/ |
Tap Water or Circulating Water |
13 |
Overall Dimensions |
mm |
1400×460×950（L×W×H） |
14 |
Weight |
kg |
450 |
Features
1)With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
2)Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
3)The whole procedure of feeding, forming, heat-sealing, impressing, batch number printing and cutting is accomplished automatically and continuously. The machine is small in size, with frequency inverter and ease of operation.
