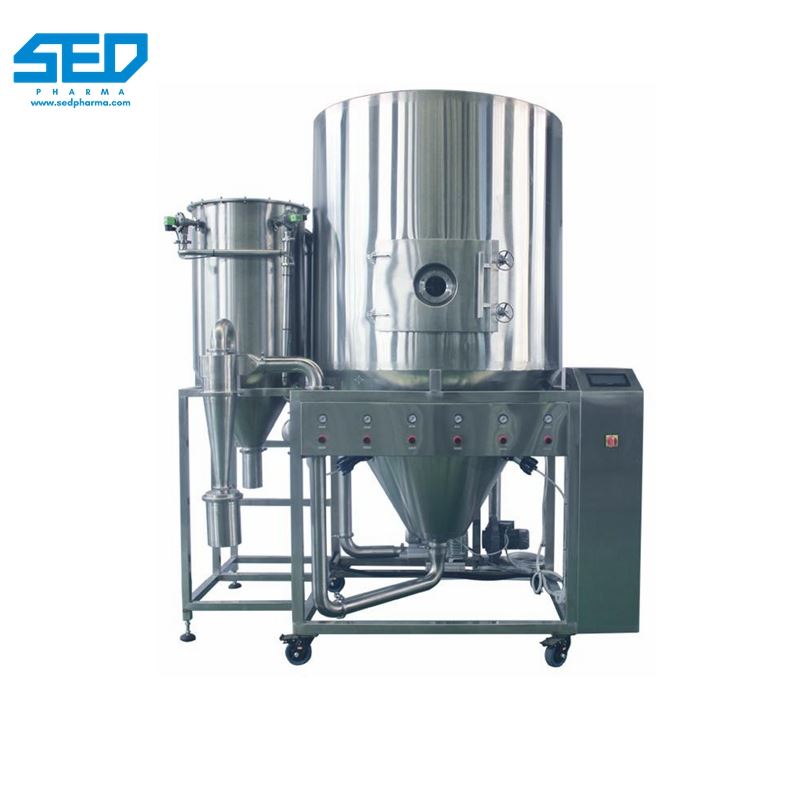

小型实验室喷雾干燥机主要用于高校、科研院所、食品医药、高分子材料及化工实验室生产微颗粒粉体。适用于乳液和悬浮液等所有溶液，适用于热敏性材料的干燥。如生物制品、生物农药、酶制剂等，由于被喷洒的材料只有在喷洒成雾状颗粒时才暴露在高温下，所以它们只在瞬间加热，从而使这些有生命的材料保持干燥，仍然保持其活性成分。损害。
主要特点:
1. The spray dryer adopts a large color touch screen operation, a combination of automatic control and manual control, ten-segment temperature control, with memory function, domestic weiyi:
2.全自动控制:一键启动，设定喷涂工艺参数后，温度达到预设温度，蠕动泵自动启动，触摸屏显示操作动画，操作过程清晰显示;关机时按下停止按钮，机器自动关机。
3. Manual control: If you need to adjust the process parameters during the experiment, you can easily switch to the manual state, and the whole experiment process is displayed on the color touch screen dynamically.
4. Shutdown protection function: Just press the stop button when shutting down, the machine will stop running immediately except for the fan, to ensure that the equipment will not burn out the heating part due to misoperation (forcibly shutting off the fan).
5.喷雾干燥收集系统采用透明高硼硅酸盐耐热玻璃材料，使喷雾干燥过程在稳定的环境中进行，整个喷雾干燥实验过程可以直接观察到，为科研人员控制实验过程和实验结果提供方便，并能及时发现和解决问题。所有的玻璃元件都易于拆卸和清洁。
6. The small spray dryer has a built-in imported oil-free air compressor. The particle diameter of the spray powder is normally distributed, the fluidity is very good, and the noise is very low, less than 60db, which meets the national laboratory noise standard;
7. The atomization structure of the two-fluid spray, the whole machine is made of stainless steel, the design is compact, no auxiliary equipment is needed, it is convenient to use, and it is as new as it is long-lasting.
8. In order to meet the user's requirements for adjusting various parameters in the experimental range, the real-time PID constant temperature control technology is adopted in the design of the drying temperature control, so that the temperature control of the whole temperature zone is accurate, and the heating temperature control accuracy is ±1℃.
9. In order to maintain the purity of the sample, it is equipped with an air inlet filter.
10. The feed volume can be adjusted by the feed peristaltic pump, and the sample volume can reach 50ml. Optional magnetic stirrer
11. The granularity of the finished dry powder after drying is relatively uniform, and more than 95% of the dry powder is in the same granularity range.
12. The small spray dryer is equipped with nozzle cleaner (through needle) for viscous materials. When the nozzle is blocked, it will be automatically cleared, and the frequency of the needle can be automatically adjusted;
