Automatic plastic bottle liquid filling and capping machine Product description Rotary capping machine is an ideal automatic cap sealing machine which integrates automatic capping, capping and bottle discharging. It can be easily linked with other equipment to realize full line automation....

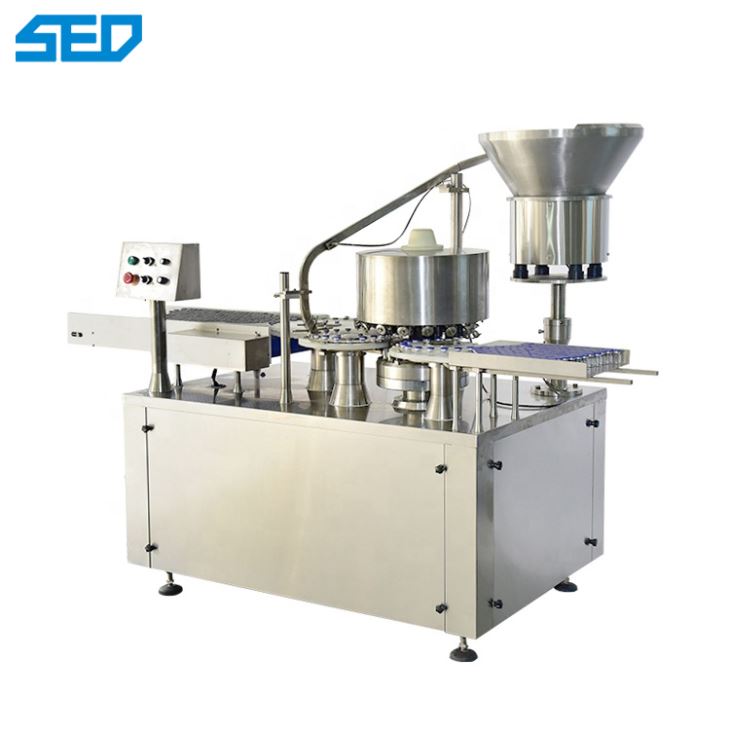

Vial Capping Machine
产品description
Vial capping machine is an ideal automatic capping machine, which integrates automatic capping, capping and bottle out. It can be easily linked with other equipment to achieve full line automation.
The vial capping machine is mainly used for high-speed capping and sealing of vials and oral liquids in the pharmaceutical, medical, food, chemical and other industries. It is a multifunctional and stable sealing device.
主要参数
Container specifications |
5-20ml |
产品ion capacity |
100-300 bottles / minute |
Cover rate |
≥99% |
Rolling pass pass rate |
≥99% |
Machine net weight |
900Kg |
Dimensions |
1800 × 1100 × 1500 |
Power supply |
220V 50Hz |
Total power |
2 KW |
Main features
1. This machine integrates automatic bottling, automatic capping, capping and bottle out. It is compact and flexible. It can be used in standalone mode and can form an automatic production line.
2. The appearance of all 304 stainless steel structural parts, POM material specifications, beautiful and generous, easy to clean, anti-pollution, anti-corrosion, to ensure the comfort of the production environment.

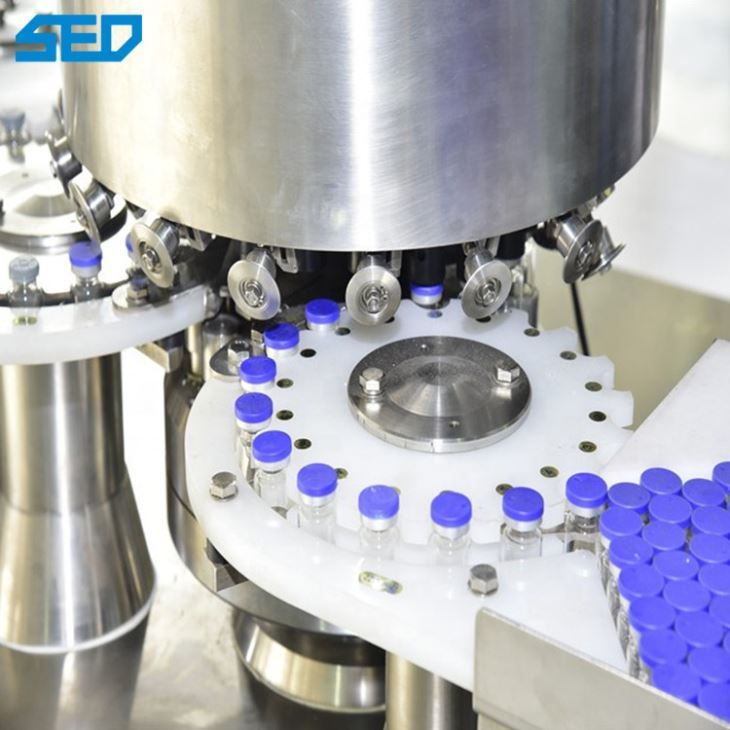

3. The turntable is divided into bottle caps and bottle caps. The 18 capping heads are single-pole rolling caps with high work efficiency. Gear transmission, stable and reliable operation.
4. The gland part adopts the patented technology of the new single-pole rolling cover. The pitch of the capping head is equal to the filling amount of the unfilled pitch. At the same time, due to the small spacing (less than 30mm), the running speed of the bottle production line is only 1/3 of the original output. The variable-pitch device makes the transmission device, especially the device above the table, simple, with fewer sanitary corners and more GMP-compliant. The flexible single-pole floating rolling tool mechanism has a wide range of adaptability to packaging materials, and the seal is firm and firm.
5. The maximum capacity of the capping machine is 3500, the number of caps in operation is small, the cap height is only 150cm, it is easy to observe and cover, the labor intensity is low, and the humanity index is high. The intensity of the oscillating device can be adjusted by adjusting the knob of the adjuster.
