Filling Capping Machine Manufacturer

mini bottle filling machine Product description This series Automatic 3-in-1 machine intergrates Wash bottle,filling bottle ,capping bottle into one unit .Water Filling Machine is used to produce bottled mineral water, purified water, flavored water, alcoholic beverage and other non-gas Liquid....

Filling Capping Machine Manufacturer


Filling Capping Machine Manufacturer three-in-one automatic bottle washing machine integrates the filling bottle, the filling bottle and the capping bottle into one. The filling machine is used to produce bottled mineral water, purified water, flavored water, alcoholic beverages and other non-gaseous liquids.

产品description


The machine can be applied to various plastic products, such as PET and PE. The size of the bottle varies from 250ml-2500ml, almost no need to change. The capacity of this series of filling machines ranges from 3000BPH to 32000BPH.


Main parameter

Model

CGF8-8-3

CGF12-12-6

CGF18-18-6

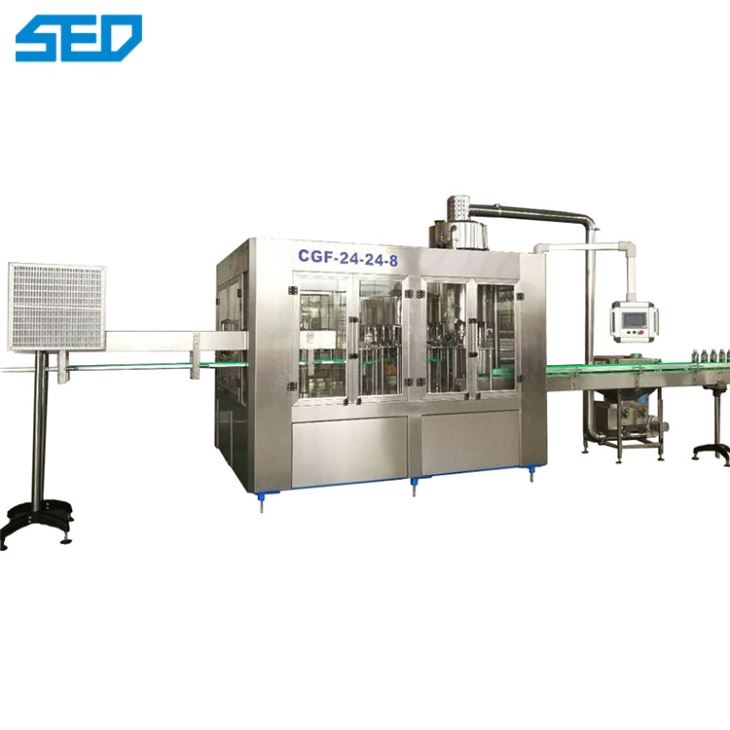

CGF24-24-8

CGF32-32-12

CGF40-40-12

Heads of washing filling capping

8-8-3

12-12-6

18-18-6

24-24-8

32-32-12

40-40-12

Output500mlB/H

2000

4000

6000

10000

12000

14000

Suitable Bottle Size

Φ=50-95mm 330ml-1500ml

Φ=50-105mm 330ml-2000ml

Φ=50-110mm




Spraying Pressure(Mpa)

0.25-0.3Mpa






Power Supply(Kw)

3.5

5

6.6

7

10.4

11.5

Overall Dimentsion(LxWxH)mm

2000x1500x2300

2300x1700 x2500

2500x1850 x2500

3100x2100 x2500

4600x2160 x2500

4600x3800 x2500

Main features

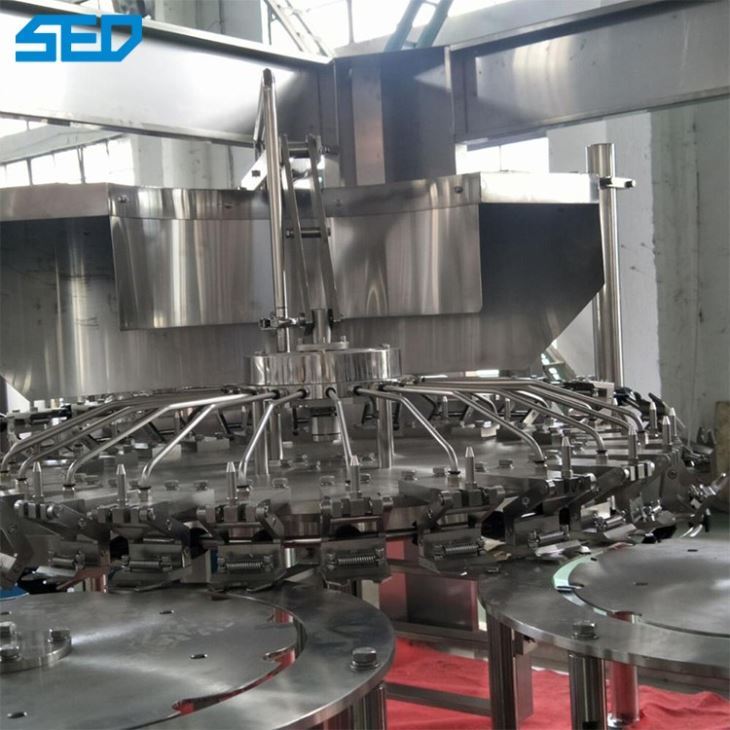

1. The suspending bottleneck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

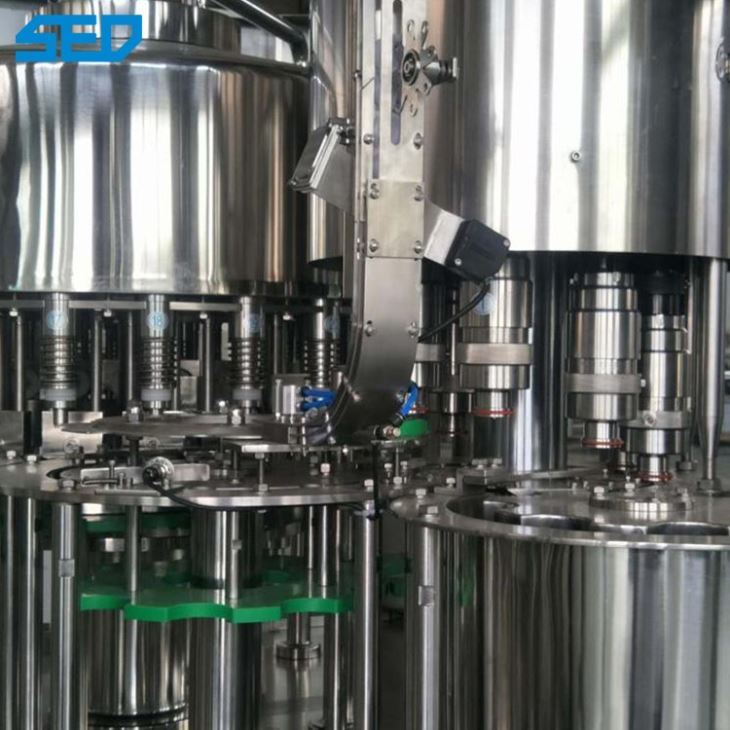

2. The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.


3. The advanced Atmospheric pressure filling technology used in this machine makes the filling quick, steady and accurate. The beverage -holding tank is fully-closed and also, temperature control device and CIP washing interface are intalled.


4. Advanced technologies, such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
