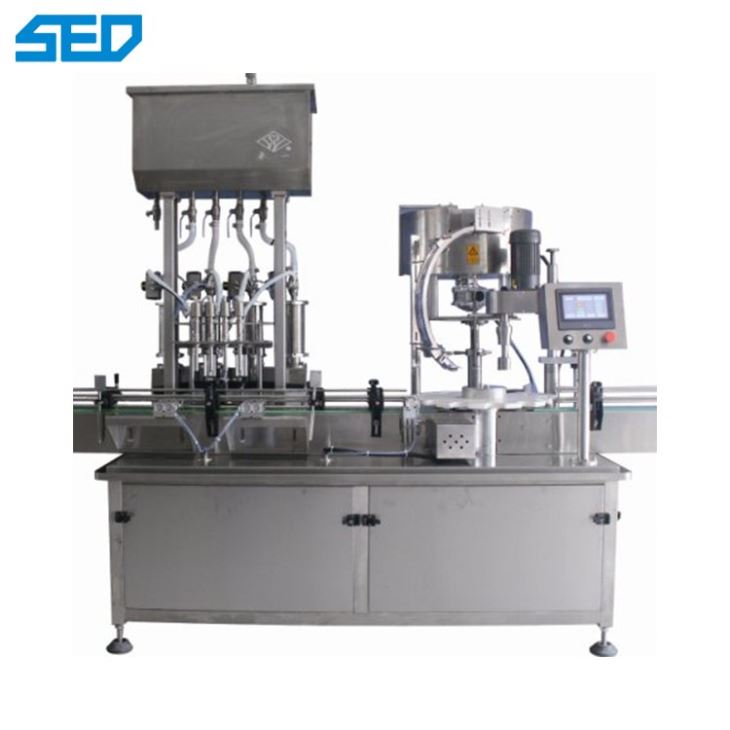

Glass Bottle Filling And Capping Pharmaceutical Packaging Machine

Glass Bottle Filling And Capping Pharmaceutical Packaging Machine

产品description

Suitable for filling and capping of various viscous materials, suitable for agrochemical, daily chemical, food and other industries. It can be used in production line with labeling machine equipment.

Main Parameter

Model	YGX-4E	YGX-4F
Filling head	4	4
Applicable bottle shape	W Φ 20- Φ 60 mm , H 50-150 mm	W Φ 40- Φ 90 mm , H 80-230 mm
Dia. of bottle mouth	≥ Φ 15mm	≥ Φ 18mm
Applicable cover	Φ20- Φ50 mm	Φ30- Φ70 mm
Filling volume	30ml-500ml	50ml-1000ml
产品ion speed	≤ 2400b/h	≤ 2000b/h
Dose accuracy	±0.5%-1%	±0.5%-1%
Power supply	AC220V , 50/60HZ	AC220V , 50/60HZ
Power	3KW	3KW
Air pressure	0.6-0.8 mpa	0.6-0.8 mpa
Machine size	2000x1200x2000mm (L X W X H)	2000x1200x2000mm (L X W X H)

Main Features

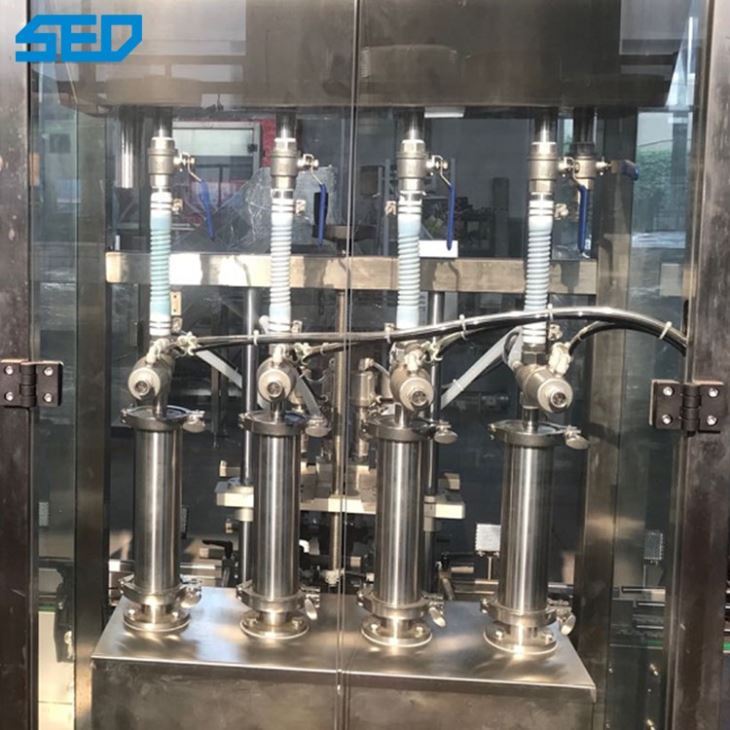

Filling part:

Precise measurement: servo control system, high piston stroke, high precision measurement.Measurement accuracy within ± 1.0 mm

Variable filling speed: when the filling capacity is close to the target filling capacity, the variable speed can be used to achieve slow filling, to prevent liquid overflow bottle.

Easy to adjust: changing the filling specifications simply change the parameters on the touch screen and change all the filling heads at once.

Hygienic and convenient: the whole machine adopts anti-leakage treatment, pipeline connection is quick and easy to maintain.

Tighten the restriction section:

First put the lid to the lower lid position by the lid machine-then take the lid to the mouth of the bottle-adjust the lid-clamp the bottle with the side, tighten the lid with the lid with the clutch.
