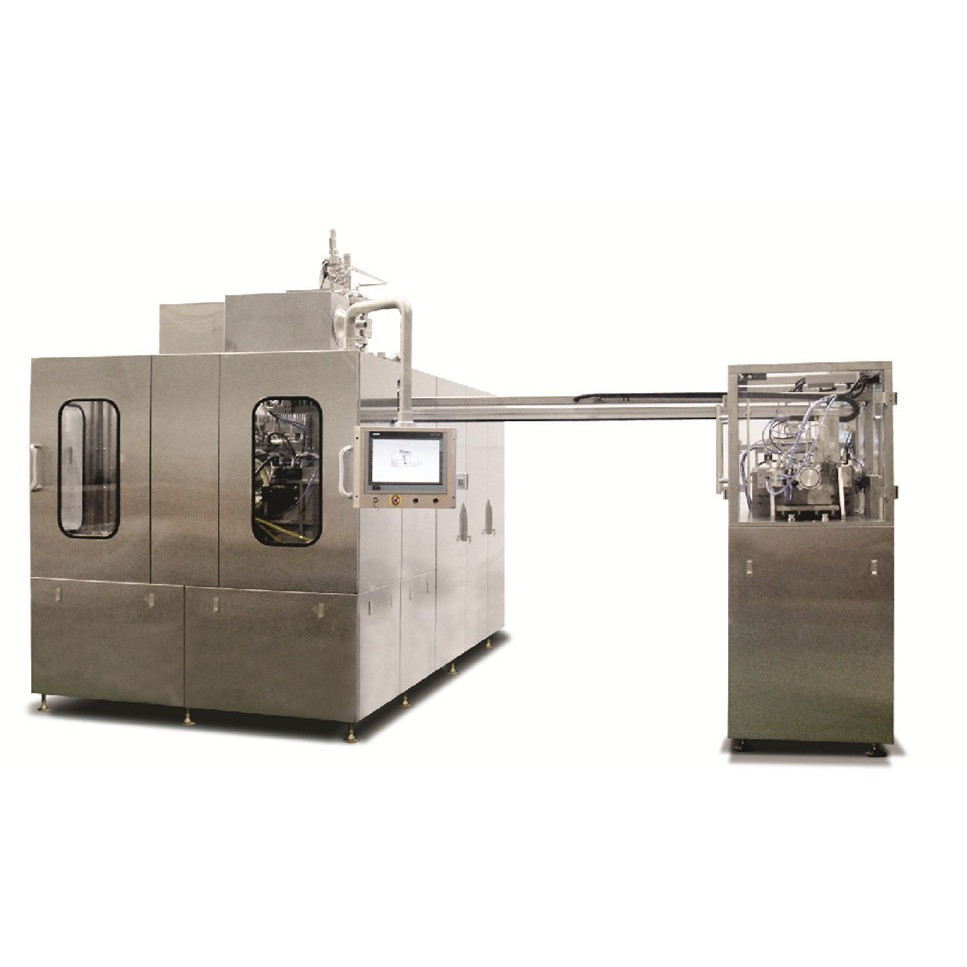

Automatic Asepsis Filling With Good Quality Product Description The machine completes the formation, filling and sealing of ampoules in a continuous operation cycle. All manufacturing steps are performed on one machine under aseptic conditions.
Automatic Asepsis Filling Machine
Product Description
好质量的自动无菌灌装nd completes the formation, filling and sealing of the ampoule in a continuous operation cycle. All manufacturing steps are performed under aseptic conditions on one machine.
Model |
CGF-LT3 |
Use Scope |
small volume parenterals,ophthalmic.solutions |
Material |
PE,PP |
Filling Volume |
0.4-20ml |
Capacity |
6000pcs/hour |
Power Consumption |
75kw |
Power Supply |
380v 50hz three phase |
Compressed Air |
8bar 300l/min |
Cooling Water |
3cbm, 12celcius, 2bar |
Steam |
40kg/hour, 2bar (Preparation) |
15kg/hour, 2bar (Production) |
|
Washing Water |
1cbm, 2.5bar, 15minutes |
Vacuum |
1cbm, 2.5bar, 15minutes |
Overall Dimension |
5260*2600*3015mm |
Weight |
8000kg |

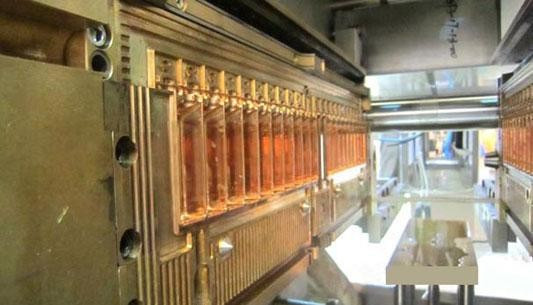

Products Show
Feature
1. The design is novel, the block structure is adopted, and the maintenance is convenient.
2. Large capacity, small floor space, small clean room. The whole process is completed on one machine.
3. Only one operator is required for blowing, filling and sealing stations, thus saving labor.

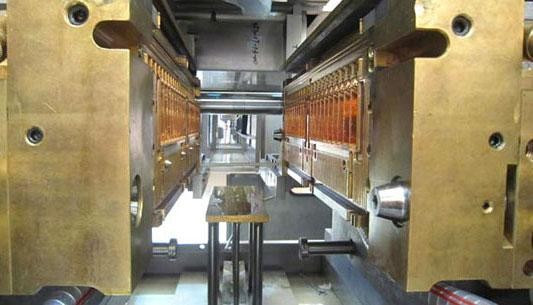

4. Save energy. The machine has a high-speed heat-insulating screw, which can melt plastic particles through friction, which can save more than 50% of energy compared with traditional blow molding machines.
5. Adopt the latest aseptic packaging concept. Under normal conditions, aseptic filling can be achieved without external air filters or aseptic conditions. The whole filter and the parts connected with the medicine should have CIP and SIP (between 121c° and 140c°). Filling and sealing should be carried out immediately after injection and blow molding to avoid any pollution.
6. Has a high locking force.
7. The time pressure measurement system has high accuracy. No spots, easy to adjust the volume, replace parts and maintain.
8. Automatic plastic clamps are used when the machine starts.
FAQ:
Q1:Are You A Factory or A Trading Company?
A: We Provided Perfect OEM and After-sale Service.
Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan.
Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine.
Q4:How Can I Know Your Machine Is Designed For My Product?
A:You Can Send Us Samples of Your Product and We Test It On Machine.
Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying Methods.
Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated.
Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
