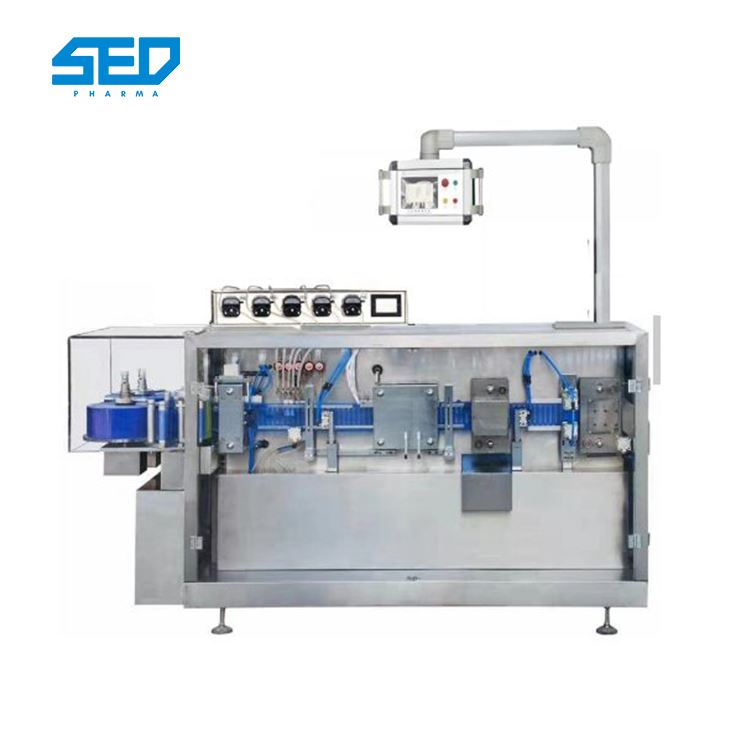

E-liquid Plastic Ampoule Filling And Sealing Machine
Product Description
This automatic plastic ampoule filling and sealing machine is designed to fill e-liquid, syrup cream nail polish and seasoning products into bottles or cans, such as cooking oil, shampoo, liquid detergent, ketchup, etc. It is widely used to fill bottles and jars of different volumes, shapes and materials.
It can be customized according to customer requirements. We can also add it together with capping machine, labeling machine and even some other processing equipment to make it a complete production line.
Model |
SED-4SP( Four filling nozzles) |
Maximum forming depth |
12 mm |
Cutting frequency |
0 – 25 time |
Maximum capacity |
100 bottles/min |
Packing material |
PVC/PE film( 0.2 – 0.4) x 120 mm |
Filling volume |
2 – 25 ml/bottle |
Power |
3.5 KW |
Power supply |
AC,220V/50HZ 1 phase or customization |
Net weight |
450 kg |
Overall size |
2200x900x1500 mm |
Features:
1) PLC control, stepless frequency conversion adjustment.
2) paper, plastic molding, filling, batch number, cut the tail, cutting, etc. 7 location by the program automatically.
3) man-machine interface device, the operation is simple and clear.
4)filling head does not drip, no bubble, no overflow.
5)and related parts in contact with the liquid are all made of high quality stainless steel material, conform to GMP standard.
6) main pneumatic components, electrical appliances imported accessories.
7)electronic peristaltic pump control filling system and mechanical filling two kinds, accurate measurement error is small.
SED-4SP configuration list |
|||||
Name |
QTY |
Price |
brand |
Place of Origin |
|
Motion controller |
1 |
HC |
Dongguan |
||
Dual serial port touch screen |
1 |
Vinylon |
Guangdong |
||
温度模块 |
1 |
Huibang |
Jiangsu Province |
||
Encoder DC24 V / 360 P differential |
1 |
OMRON |
Japan |
||
Thermocouple |
6 |
K |
China |
||
Circuit breaker 4P 60A |
1 |
Schneider |
Germany |
||
Circuit breaker 1p 20A |
9 |
Schneider |
Germany |
||
Small relay 4P |
1 |
OMRON |
Japan |
||
Small relay 2P |
1 |
Schneider |
Germany |
||
Switching power supply 24 V / 150 W |
1 |
MW |
Taiwan |
||
8-bit black terminal 1.25-8 |
4 |
Schneider |
Germany |
||
4-bit black terminal 2.5-4 |
1 |
Schneider |
Germany |
||
Green 1.25/5 terminal |
11 |
chint |
China |
||
Green terminal 4.5/5 |
1 |
chint |
China |
||
Green 2.25/5 terminal |
2 |
chint |
China |
||
Solid state relay 40A |
4 |
OMRON |
Japan |
||
Solid state relay 25A |
2 |
OMRON |
Japan |
||
radiator |
6 |
aluminum |
Zhejiang |
||
AC contactor 3210 |
1 |
Schneider |
Germany |
||
General normally closed proximity switch |
1 |
OMRON |
Japan |
||
Omron proximity switch |
2 |
OMRON |
Japan |
||
hall switch |
1 |
Schneider |
Germany |
||
Emergency stop |
2 |
Schneider |
Germany |
||
- button / red |
1 |
Schneider |
Germany |
||
Button / Black |
1 |
Schneider |
Germany |
||
Button / yellow |
1 |
Schneider |
Germany |
||
Button / Green |
1 |
Schneider |
Germany |
||
Servo Motor |
1 |
yaskawa |
Japan |
||
Main motor |
1 |
Sankai |
China |
||
Frequency converter |
2 |
Schneider |
Germany |
||
Peristaltic pump |
1 |
Huiyu |
China |
||
