详细讲解枕式包装机的操作步骤

2021年3月29日,

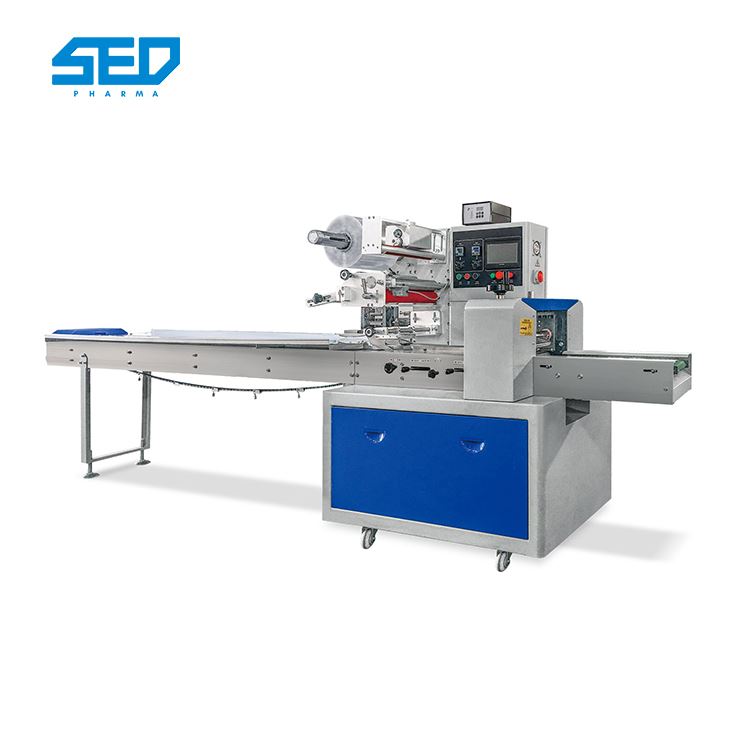

枕式包装机是一种包装能力很强的连续包装机,适用于各种规格的食品和非食品包装。枕式包装机不仅可以用于非品牌包装材料的包装,也可以用于预印商标图案的卷料的高速包装。在包装生产中,由于包装材料上印刷的定位色标和包装材料的拉伸以及机械传动等因素的影响,包装材料上预定的封切位置可能会偏离正确位置,导致错误。为了消除误差,达到正确封切的目的,枕式包装机的包装设计必须考虑自动定位问题。

1

枕式包装机操作步骤:

   1. Matters needing attention before starting the pillow packaging machine

1.启动枕包装机前,请将机器上(包括包装上料装置和输出装置)的杂物(如工具等)拿走,并用托盘手轮转动机器2-3圈,确保枕包装机能自由转动。

   2. Before starting the equipment, please close or fix all protective covers.

  3. Please check the effectiveness of the stop button or safety switch every time before starting the machine.

  4. When the pillow packaging machine is running, the temperature at the vertical and horizontal sealers can reach 200-300 degrees, or even higher. It is not allowed to touch the sealer to avoid burns or cuts.

  5. If there is an abnormal situation, please stop it immediately, and the pillow packaging machine can start production after troubleshooting.


 二. The operation process of the pillow packaging machine:

   1. Turn on the power switch in the electric control box, turn on the main power air switch, and the power indicator light is on.

  2. Turn on the heater switches of the pillow packaging machine, the heating indicator light is on, and it usually takes 20 minutes to reach the set temperature.

  3. According to the installation of the packaging film, jog the packaging film through the two rollers, then open the rubber pressure roller control handle, pull through the bag maker to the lower conveyor belt, and close the handle.

4.按启动按钮启动设备,切4-5袋,观察包装膜成型情况,测量袋长情况,观察自动跟踪情况。单向跟踪装置的裁剪长度只能短于包装袋的印刷长度,不能长。否则,自动跟踪将不起作用。

   5. Adjust the tracking position of the cutter:

  A. Jog to the position where the cutter is about to close, and dial the tracking switch to make the color mark at the cutter.

  B. Jog to align the color code with the beam position of the color code photoelectric switch.

  C. Rotate the tracking point handle counterclockwise to make the tracking detection light on, and turn the handle clockwise until it just goes out.

  6. Supply packaged goods to the feeding conveyor, close the clutch, pull the conveyor to a suitable position by hand, close the clutch.

  7. If the package is ahead or lagging behind, open the clutch, pull the conveyor to a suitable position by hand, and close the clutch.

   8. When the pillow packaging machine is in automatic operation, pressing the safety switch and emergency switch can make the pillow packaging machine stop.
