Automatic PLC Electronic Counting Machine

Automatic PLC Electronic Counting Machine

Product Description of Tablet Counter

The advantage of the fully automatic PLC electronic counting machine is that there is no need to change the mold when changing the counting object, just adjust the height of the counting table

through the Easy Adjust wheel. This machine is equipped with touch screen operation and PLC control, which is easy to operate.

Machine Parameters of Tablet Counter

Model Name	SED-32S
Application	1. Filled capsule(00-5#) 2. Soft Gelatin capsule 3. chewing gum 4. tablet 5. other solid object under machine range
Hopper Volume	90L
Capacity	10-120 bottles/min
Filling Quantity	2-9999 pcs/bottle (adjustable)
Bottle Size	Diameter: ≤50mm Height:40-180mm
Counting Size	Pills with diameter of 22mm or less are compatible with 000-5# capsules soft capsules with diameters of 3.5mm-22mm plain tablets special-shaped tablets sugar-coated tablets
Compressed air	0.6Mpa 5L/min
Machine Weight	710kg
Machine Size L × W × H (mm)	2160*1530*1700mm

Feature of Tablet Counter

Suitable for all standard and irregular shapes and sizes of tablets, capsules, caplets, etc.;

Counting error is less than 1‰

运行平稳,噪音低

Double track conveying bottle conveys smoothly

Double nozzle high-speed filling

A full set of protection devices, stable and reliable operation

Easy-to-control touch screen control system

Simple and straightforward operator controls

Easy-to-solve on-screen fault descriptions

stainless steel frame

Industry Type: Nutraceuticals, Pharmaceuticals, Food & Beverages

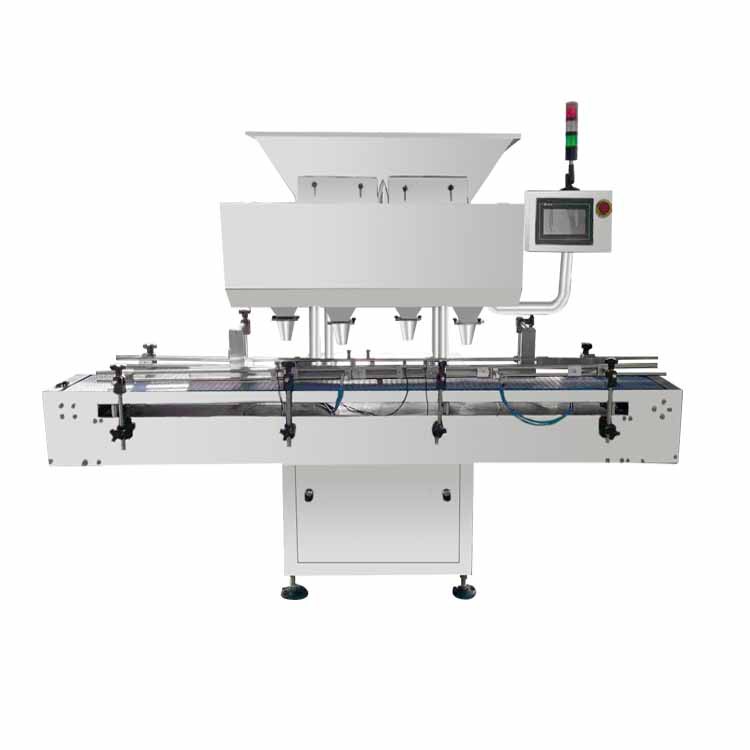

Product Show of Tablet Counter

Application of Tablet Counter

The high-speed tablet capsule counting filling machine has 32 counting channels. The compact design of the dual track conveyor increases output capacity. Equipped with an advanced inspection system,

the SED-32s can count and fill all standard and irregular shapes and all sizes of tablets, capsules, caplets, softgels with 100% accuracy.
